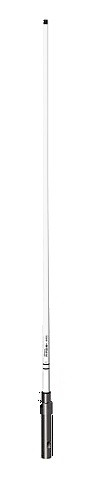

Shakespeare 6400-R 4' VHF Marine Band
3sb Gain, Collinear-phased 1/2-wave coaxial sleeve
Model: 6400-RUPC: 719441200374
- Silver-plated outer conductor, copper inner conductor
- PL259 connector inside mounting sleeve for easy mounting and dismounting for stowage
- Versatile stainless steel mounting sleeve for standard 1in-14 thread or mast mount
- High-strength fiberglass radome
- High-gloss, high-performance, non-yellowing polyurethane finish
Collinear-Phased 1/2 Wave Elements This high performing, 4' VHF antenna is infused with the quality of our incomparable Phase III™ electronic elements. The commercial grade antenna is great for hardtops, T-tops and other locations aloft where the compact size can deliver reliable communications via VHF radios. The master craftsmanship of the foam-filled radome positions this antenna within our finest line.
Specifications| Design | Collinear-phased 1/2-wave coaxial sleeve |
| Height | 4' |
| Frequency Band | Marine |
| Gain | 3db |
| SWR | Less than 1.5:1 at 156.8 MHz |
| Bandwidth | 3 MHz within 2.0:1 VSWR |
| Impedance | 50 ohms (nom.) |
| Max power input | 150 w |
| Pattern | Omni-directional |
| Polarization | Vertical |
| grounding | No |
