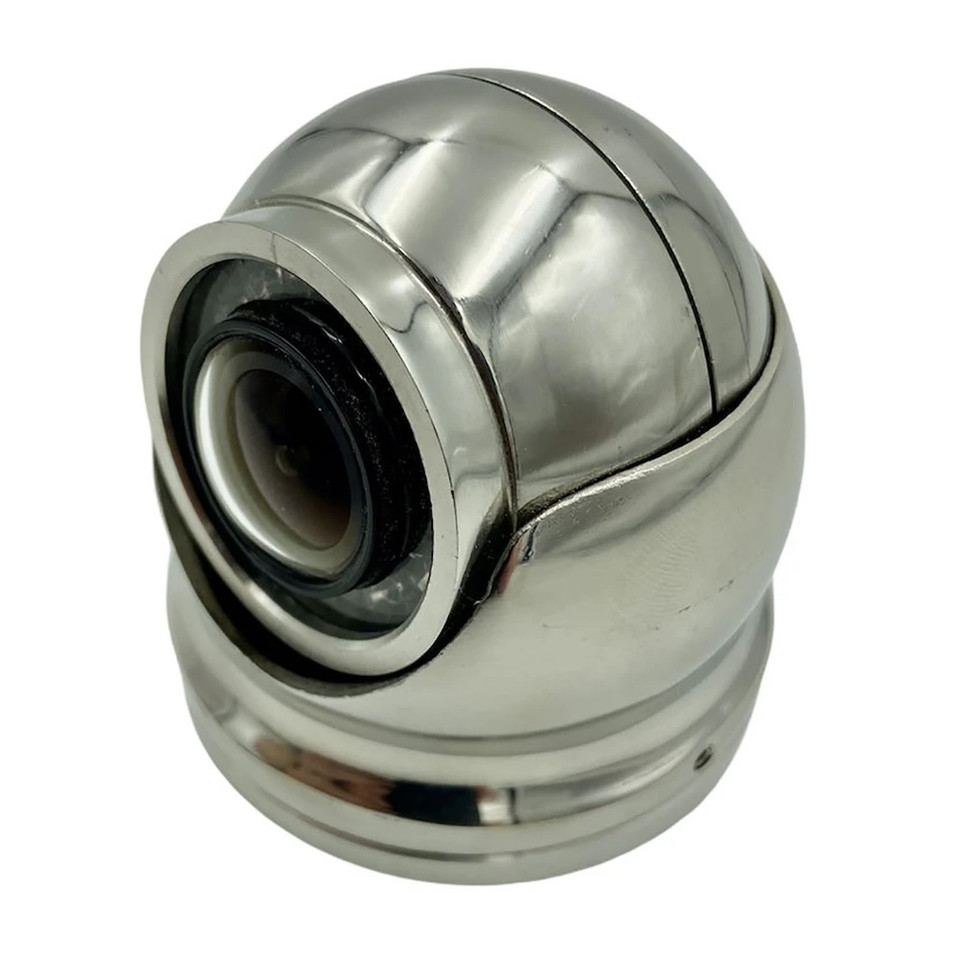

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera
Model: 000-15876-001- Pre-configured for use with Simrad, Lowrance and B&G MFDs
- Fast setup on each MFDs
- Rugged 316 Marine Grade Stainless Steel Housing
- 1.8mm 160° viewing angle - See the entire deck
- Compatible with NOS 20.2 or later
- Built In IR LED Illumination (10m Range)
- PoE IEEE802.3af Power Option
- Extremely Low Power Consumption
- IP66 Environmental Protection
| Power | |
| PoE | IEEE802.3af (RJ45) |
| DC | 12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector |
| Power Consumption | |
| IR LED Off | 1.38W (0.1A at 13.8V DC) |
| IR LED On | 2.76W (0.2A at 13.8V DC) |
| Enviromental | |
| Operating temperature | -30°C to +60°C (-22°F to 140°F) |
| IP Rating | IP66 |
| Resolution | |
| Main stream | 1080p (1920x1080) |
| Sub Stream | 448p (800x448) |
| Protocol | RTSP |
| Mechanical | |
| Lens | 1.8mm (160° Wide Angle) |
| Sensor | 1/4" CMOS |
| Housing | 316 Stainless steel |
| Weight | 420g |
| MFD resolutions capabilities: | |
| NSSevo3S, Zesu3S (9",12", 16") | High Resolution 1080p |
| NSOevo3S MFDs, Zeus3S MFDs | High Resolution 1080p |
| NSOevo3S MPU, Zeus3S MPU | High Resolution 1080p |
| Information Display (9" & 12") | Low Resolution 448p |
| NSSevo3, Zeus3 (7" & 9") | Low Resolution 448p |
| NSOevo3 MFD, Zeus3 MFD | Low Resolution 448p |
| NSOevo3 MPU, Zeus3 MPU | Low Resolution 448p |
| Zeus2 MPU | Low Resolution 448p |
| HDS Live | |
