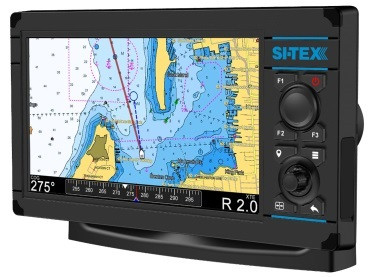

Si-Tex NavPro 900 9" GPS Chartplotter
Model: NAVPRO 900- 9" Hi-Res. Hybrid Touch Screen Display
- Innovative new Yoke & Swivel mount
- NMEA-0183 & NMEA2000 Interfacing
- WIFI Interface
- Automatic Software Updates when in WIFI Coverage
- Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.
- Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.
- Optional dedicated Remote Control Available
- Designed for easy flush mount without any special kit needed
- Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna
- New User interface makes the unit very easy to operate and navigate with
- Full AIS Integration when interfaced to an AIS Unit
The NavPro 900 MFDs offer optional high-resolution WI-FI radar that makes it easy to install and rig. SI-TEX’s 4kW, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-nm range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.
In addition to the included Polaris Charts, SI-TEX’s NavPro Series is also compatible with optional Navionics Platinum+ cartography.
Specifications| LCD Display Size | 9.0" |
| Display Brightness | 1,100 NITS |
| Display Resolution | 800x480 |
| Touch Screen | Yes, Capacitive Multi-Touch |
| Keyboard Backlight | Yes |
| Operating Voltage | 10 to 35 VDC |
| GPS Receiver | Built-In High Resolution 18Hz 72 Channel GPS/GLONASS |
| External GPS | Yes, optional via 6 pin Connector |
| Network Connections | NMEA-2000 (Optional Cable Required) ual NMEA-0183 Input/Output Ports |
| WIFI Connection | Yes |
| Bluetooth Connection | Yes |
| Waterproof Rating | IPX6 |
| Operating Temperature range | -10’C to +60’C |
| Dimensions | 10.9" Wide x 6.8" High x 3.7" Deep |
| Warranty | 2 Year |
| Input Voltage | 10 to 35 VDC |
| Dimensions | 10.9" Wide x 6.8" High x 3.7" Deep |
What's in the Box:
- NavPro 900 Display Unit
- Polaris USA Chart Card
- Mounting Bracket
- Mounting Screws
- Combination Power Data Cord
- Sun Cover
- Installation & Operation manual
