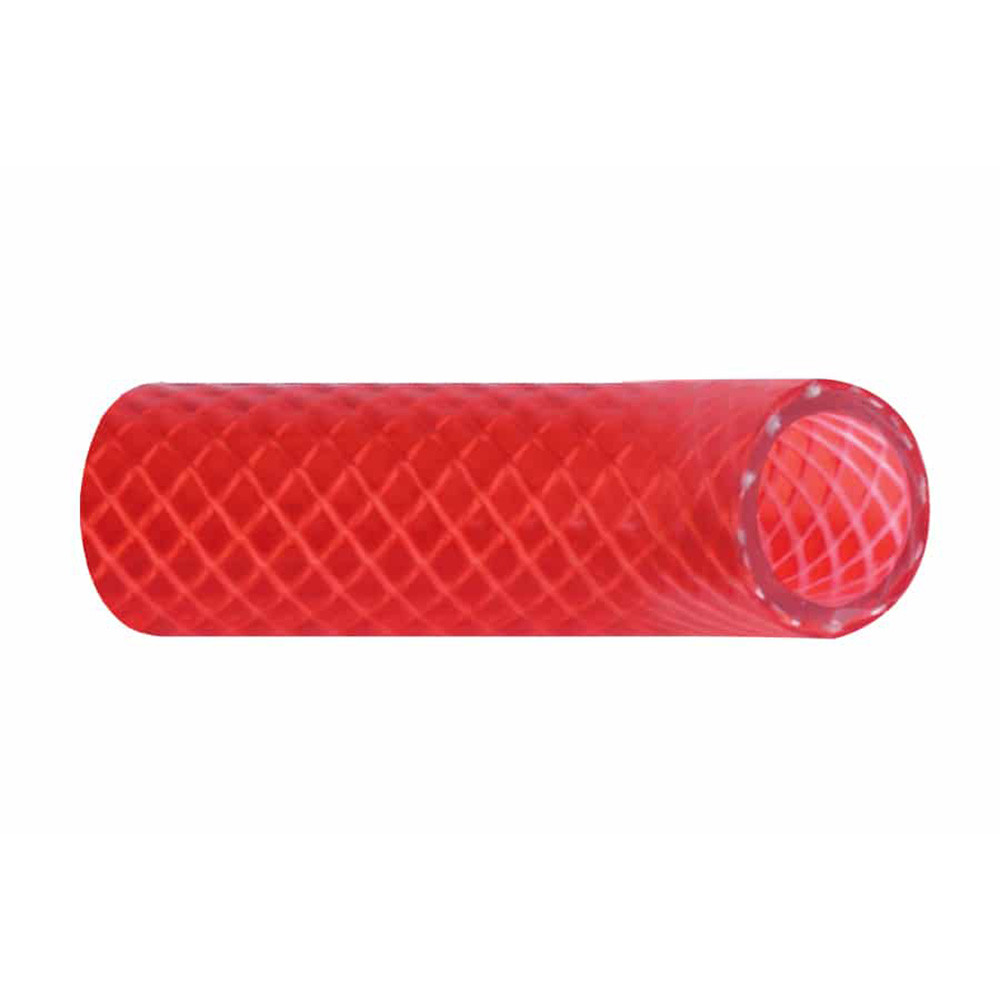

3/4" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot
Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).
Features:
- Sold by the foot
- The Red cover allows for easy identification of "Hot Water" lines on your boat
- Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
- This hose is safe for use with drinking water
Application:
- Perfect for hot, pressurized applications, hot water feed, drains, and vent lines
Construction:
- Tube & Cover: Clear FDA tube
- Color: Red Transparent
- Reinforcement: Polyester
- Temperature Range: -18°F to 149°F (-28°C to 65°C)
Specifications:
- Inner Diameter: (inch) 3/4" / (mm) 19
- Outer Diameter: (inch) 1 / (mm) 25.4
- Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
- Bend Radius: (inch) 1.5" / (mm) 38
*Burst Pressure is 4 x Working Pressure
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
