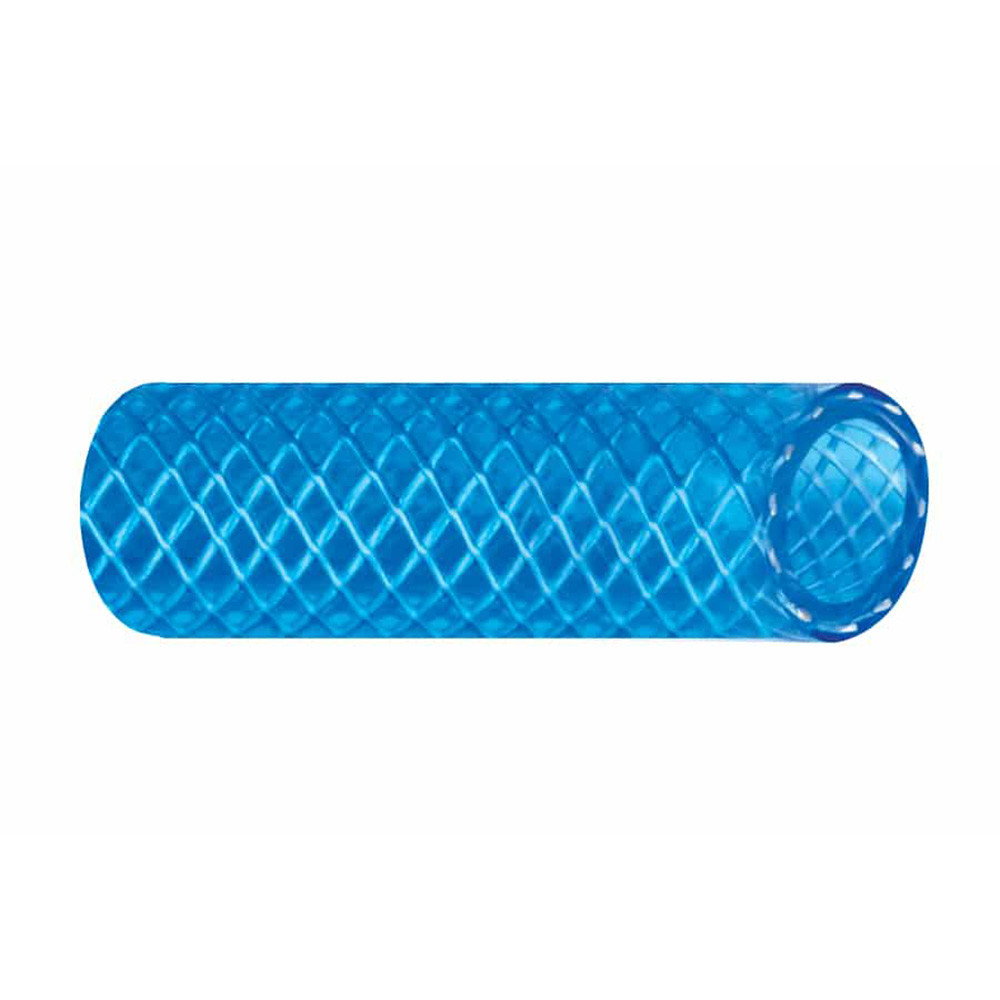

5/8" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot
Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on I.D size).
Features:
- Sold by the foot
- The Blue cover allows for easy identification of "Cold Water" lines on your boat
- Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
- This hose is safe for use with drinking water
Application:
- Perfect for cold pressurized applications, water feed, drains, and vent lines
Construction:
- Tube & Cover: Clear FDA tube
- Color: Blue Transparent
- Reinforcement: Polyester
- Temperature Range: -18°F to 149°F (-28°C to 65°C)
Specifications:
- Inner Diameter: (inch) 5/8" / (mm) 15.9
- Outer Diameter: (inch) .866 / (mm) 22.5
- Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
- Bend Radius: (inch) 1.26" / (mm) 32
*Burst Pressure is 4 x Working Pressure
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
