Power A EE12 - Electronic Control Package
-Single Engine/Dual Station - Electronic Throttle/Electronic Shift
Power A Mark II™ Electronics Control Systems
EE12 Package Includes:
Power A Mark II™ Electronics Control Systems
- Private Protocol can bus for data transmission
- Connection of multiple stations up to 4 controls
- Modular System
- Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
- Plug'N Play connectivity
- Automatic engines synchronization
- Dock Assist
- Fully programmable shift delays
EE12 Package Includes:

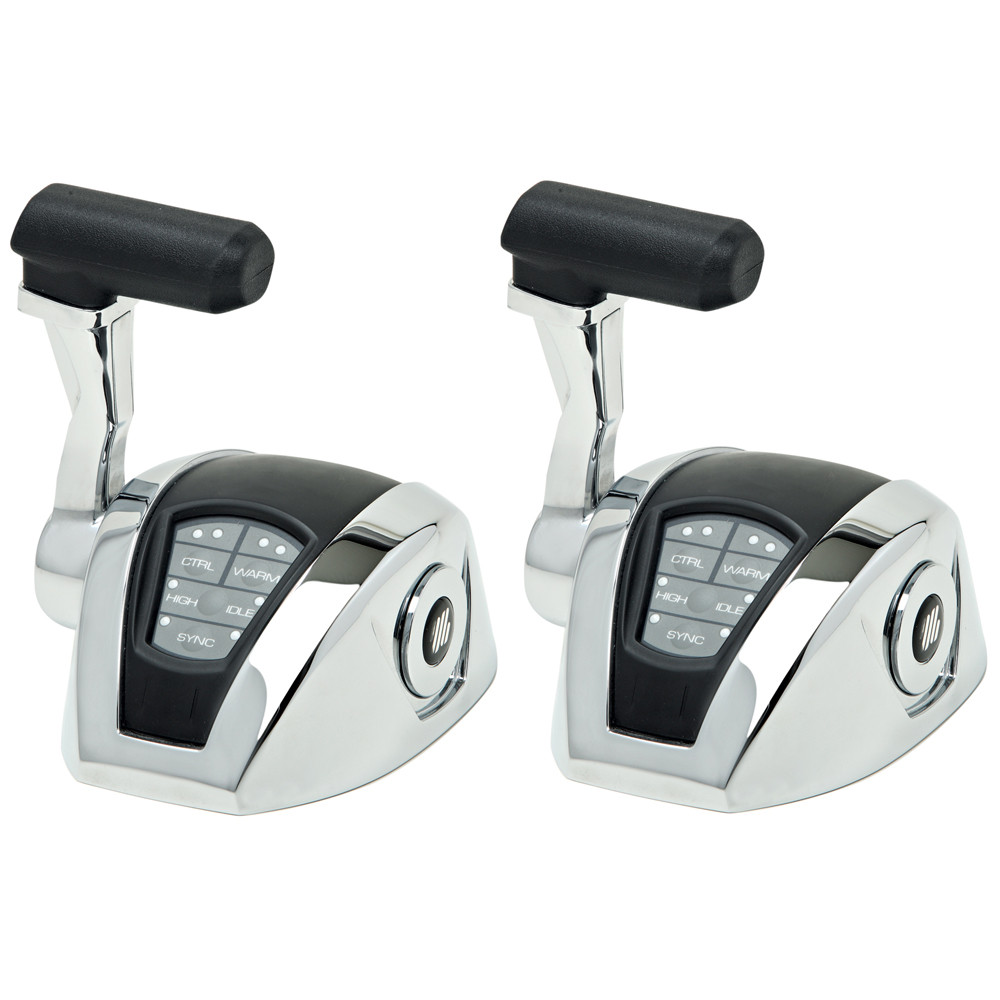

- 42009G - (2) PA2-B1 - Single Lever Control w/o Trim
- 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen
- 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface
- 42028L - (1) PA2-NT - Network Terminator
- 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'
- 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'
- 71021K - (2) CAN-10 - Network Connection Cable 33'
- 73639T - (2) CAN-1 - Network Connection Cable 3'
- 42023A - (1) PA2-SU - Electronic Shift Unit
- 42060G - (2) M-S1 - Solenoid Shift Cable 3.3'
