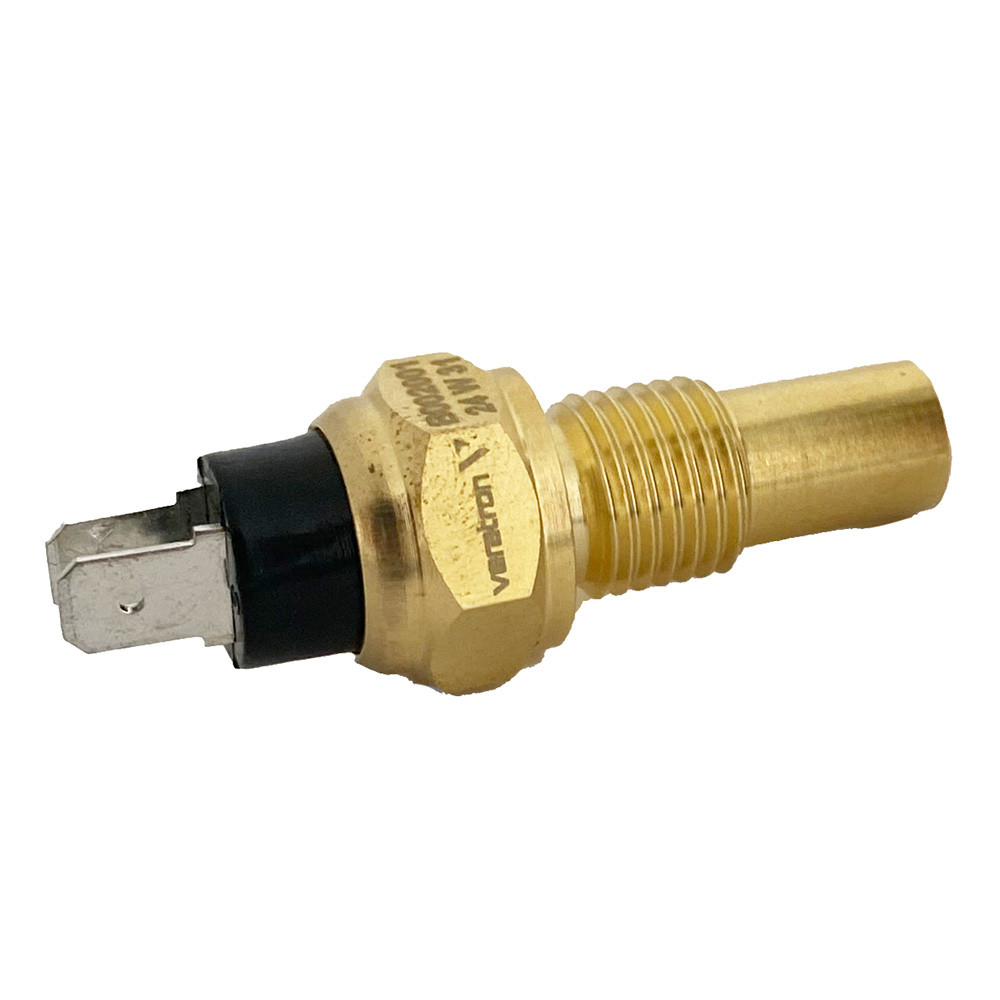

Water Temperature Sensor - 1/4"-18NPT Thread - 120°C Temp Range
These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.
Features:
- Function - Oil temperature, coolant temperature
- Length - 28.5mm (1-1/8")
- Thread - 1/4"-18NPT
- Calibration - 120°C
- Measurement Range - 120°C
- Output Signals - Resistive
- IP67
- Insulated ground pin
