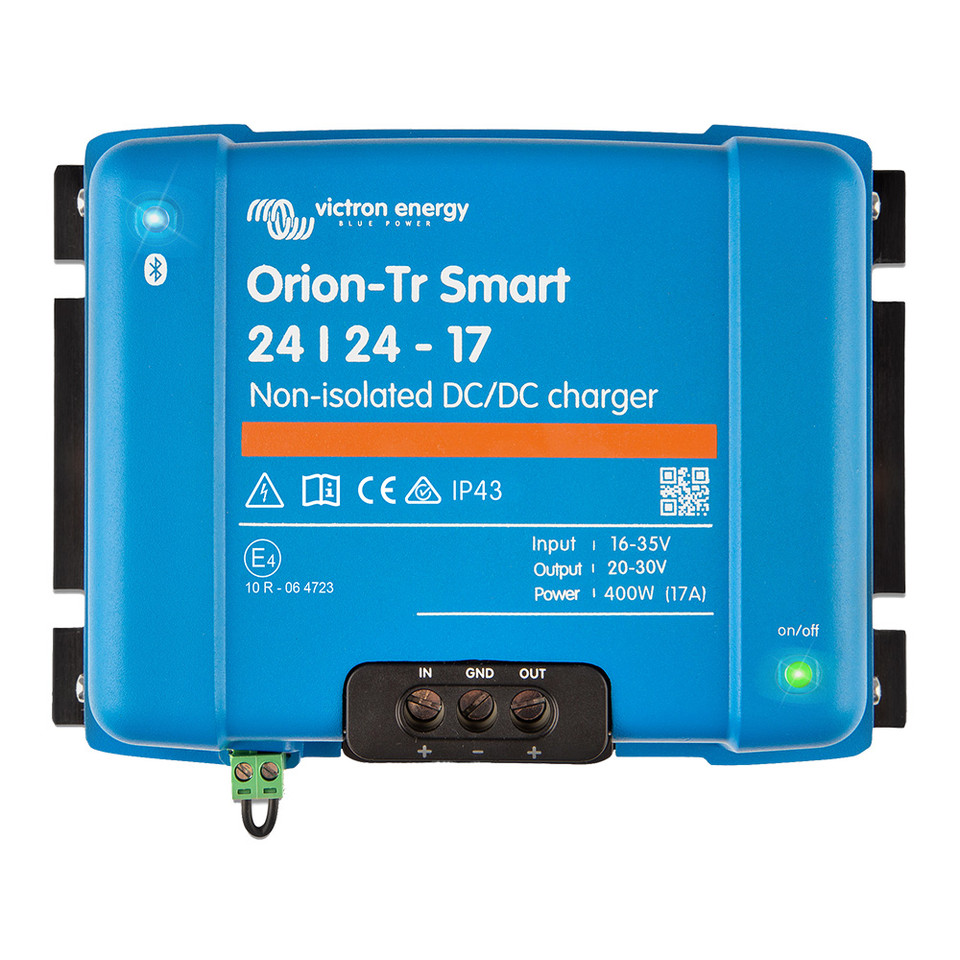

Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP
The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.
Bluetooth Smart Enabled:
- Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
- Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.
Fully Programmable:
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float:
- For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries, the absorption time is fixed (the default is 2 hours).
- Alternatively, a fixed output voltage can be chosen.
Remote On/Off:
A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:
An unlimited number of units can be connected in parallel.
High Temperature Protected:
The output current will reduce at high ambient temperatures.
IP43 Protection:
When installed with the screw terminals oriented downward.
Screw Terminals:
No special tools are needed for installation.
Input fuse (not replaceable)
Specifications:
- Input Voltage Range: 20-35 V
- Under Voltage Shut Down: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 20-30 V
- Output Voltage Tolerance: +/- 0,2 V
- Output Noise: 2 mV rms
- Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
- Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
- Short Circuit Output Current: 40A
- Cont. Output Power at 25 Degrees C: 480 W
- Cont. Output Power at 40 Degrees C: 400 W
- Efficiency: 89%
- No Load Input Current (2): < 80 mA
- Standby Current: Less than 1 mA
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² AWG6
- Weight: 1,6 kg (3.5 lb)
- Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Safety Standards: EN 60950
- Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive Standards: ECE R10-5
