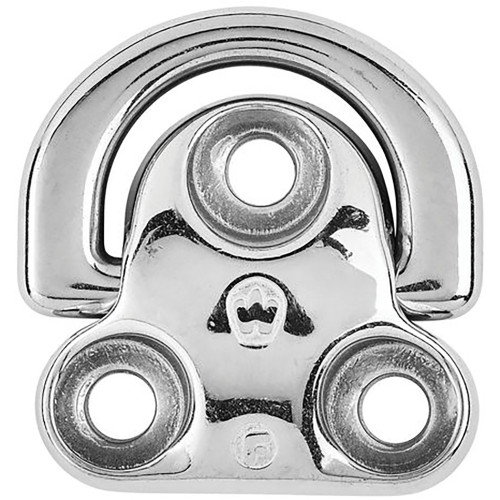

Double Folding Pad Eye - 6mm Diameter - 15/64"
Features:
- Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
- Perfect solution attachment (stay, blocks, jib tack point)
- Possibility to attach several stays
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
Applications:
- For any fastening/attachment application
- Allows to attach several shrouds
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 3170 / (kg) 1440
- Breaking load; (lb) 5510 / (kg) 2500
- Weight: (lb) 0.278 / (g) 126
Dimensions:
- A: (inch) 1 49/64" / (mm) 45
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 35/64" / (mm) 14
- d diameter: (inch) 1/4" / (mm) 6.4
- D diameter: (inch) 15/64" / (mm) 6
- E: (inch) 2 61/64" / (mm) 75
- F: (inch) 2 21/64" / mm) 59
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
