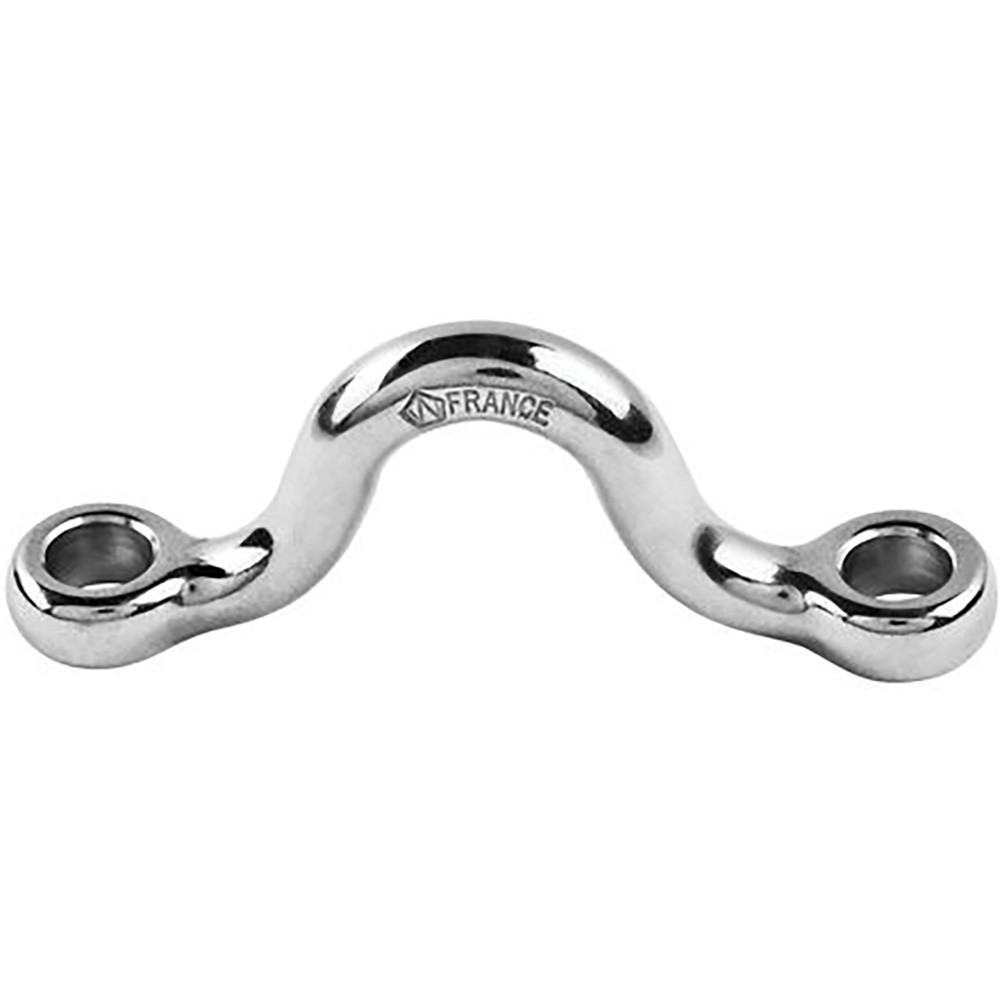

Eye Strap - 8mm Diameter - 5/16" - 60mm Spacing - 2-23/64"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps & cordage
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 7710 / (kg) 3500
- Weight: (lb) 0.084 / (g) 38
Dimensions:
- A: (inch) 5/8" / (mm) 16
- B: (inch) 53/64" / (mm) 21
- D diameter: (inch) 5/16" / (mm) 8
- E: (inch) 2 23/64" / (mm) 60
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
