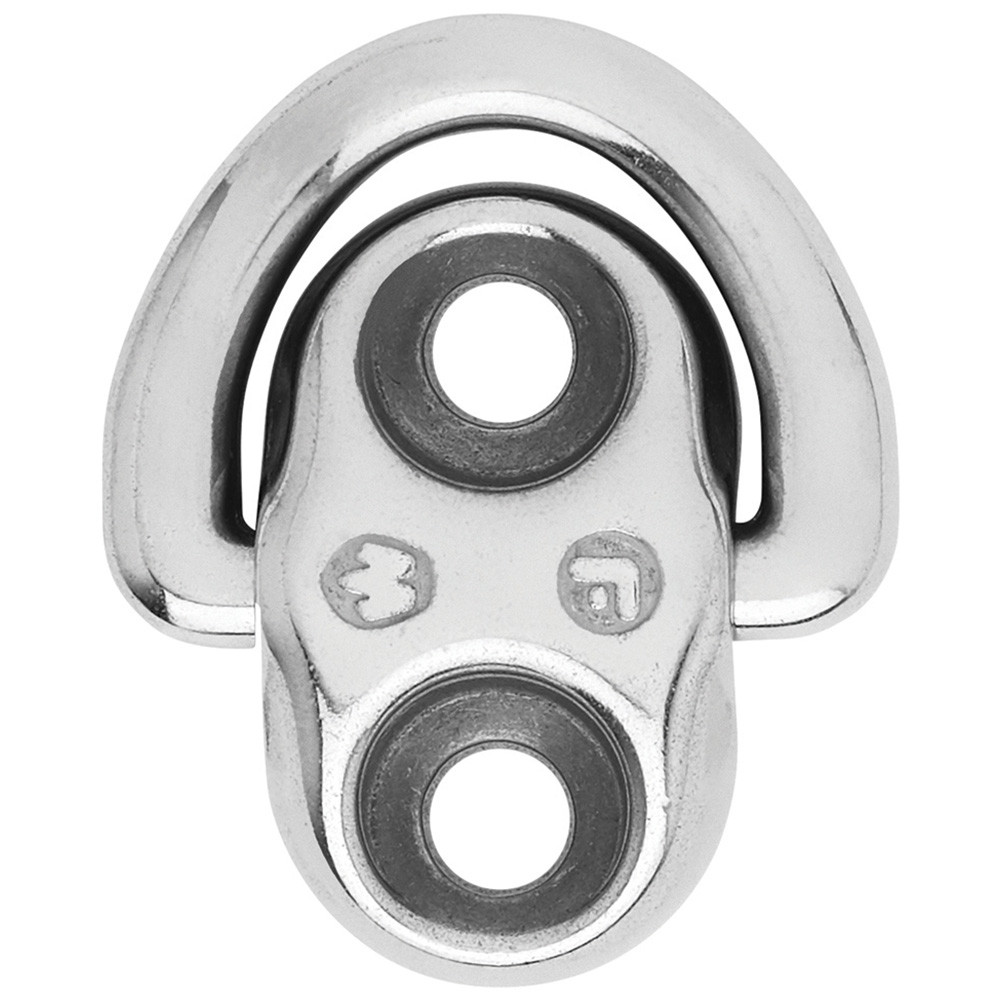

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes
Features:
- They are 100% safe and highly resistant to corrosion
- Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates moist and unpleasant vibrations
- Modern design
Applications:
- Fastening applications (stay, blocks, jib tack point, lifeline, etc...)
Specifications:
- Materials: 316L stainless steel grade
- Working Load: (lb) 1650 / (kg) 750
- Breaking Load: (lb) 3520 / (kg) 1600
- Weight: (lb) 0.123 / (g) 56
Dimensions:
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 59/64" / (mm) 23.4
- C: (inch) 19/32" / (mm) 15
- d diameter: (inch) 9/32" / (mm) 7
- D diameter: (inch) 15/64" / (mm) 6
- E: (inch) 1 37/64" / (mm) 40
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
