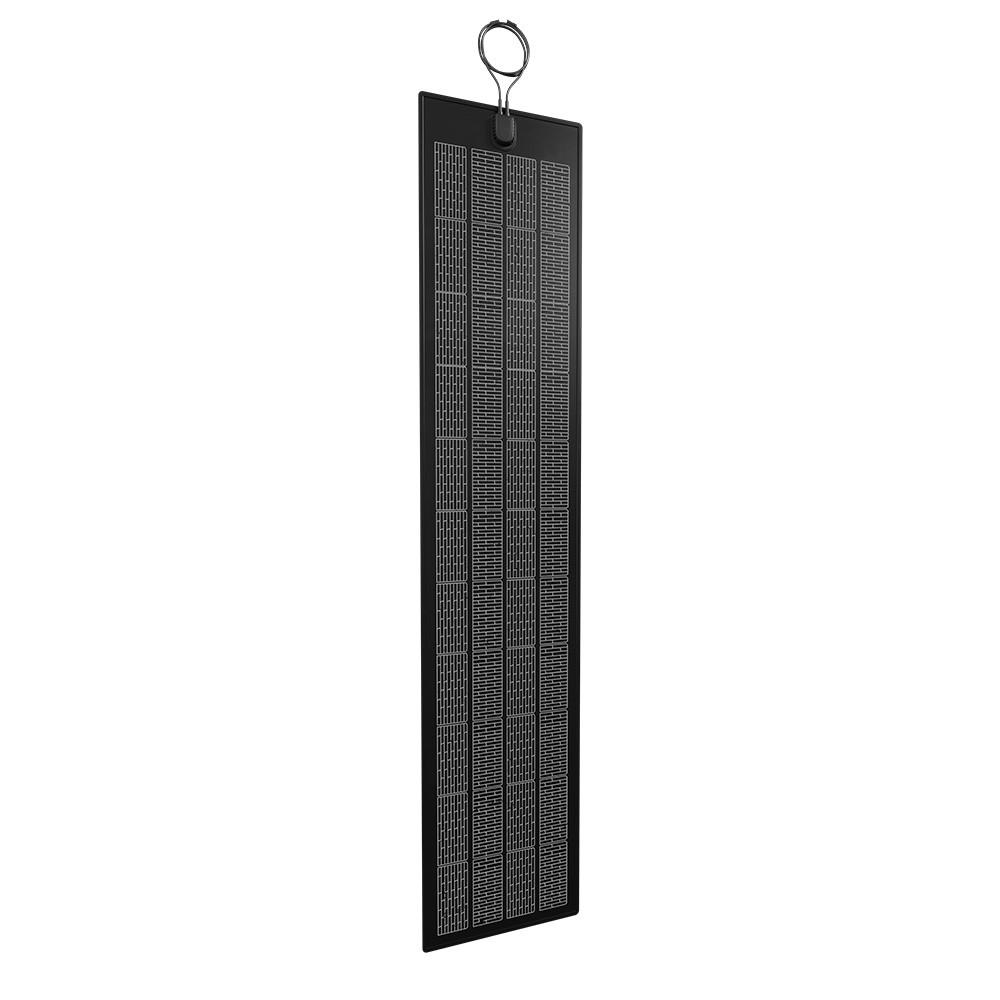

115W Solar Max Flex Slim Panel
This Xantrex slim solar panel features solar panels with mesh grid technology that provides superior durability and performance benefits. With approximately 2000 contact points per cell, this mesh grid technology allows the panel to flex up to 180 degrees without impacting power output. Subject to extreme environmental and accelerated lifecycle testing beyond regulatory standards, the Max panel was tested 50 times more durable than a standard flexible panel.
It is also designed with a highly protective top layer called ETFE (Ethylene-Tetra-Fluoro-Ethylene), which allows for better light transmittance, corrosion resistance, stain resistance, weather resistance, and overall superior durability over a wide temperature range compared to non-ETFE semi-flexible-panels-.
Features:
- Slim panel
- Premium peel-and-stick flexible solar panel
- Harvest up to 20% more energy during the day in low-light or shaded conditions compared to a standard solar panel
Applications:
- Recreational vehicles
- Heavy-duty trucks
- Marine
- Work trucks
- Specialty vehicles
Specifications:
Electrical Specifications:
- Maximum Power-Pmax (W) at STC*: 115
- Maximum Power Voltage-Vmp (V): 22.1
- Maximum Power Current-Imp (A): 5.2
- Open Circuit Voltage-Voc (V): 27.4
- Short-Circuit Current-Isc (A): 5.6
- Maximum System Voltage (V): 600
Mechanical Specifications:
- Cell Type: Mono-Crystalline PERC
- Top-Layer: ETFE
- Junction Box: IP67 Rated
- Connector: MC4 – type
- Number of Cells: 44 (4 x 11)
- Weight: 6.1 lb (2.8 kg)
- Dimensions (L x W x D): 70.3 x 15.3 x 0.08 in (1789 x 390 x 2 mm)
Temperature Specifications:
- Operating Temperature: -40–85 degrees C
- Temperature Coefficients of Pmax: -0.39%/ degrees C
- Temperature Coefficients of Voc: -0.30%/ degrees C
- Temperature Coefficients of Isc: +0.06%/ degrees C
