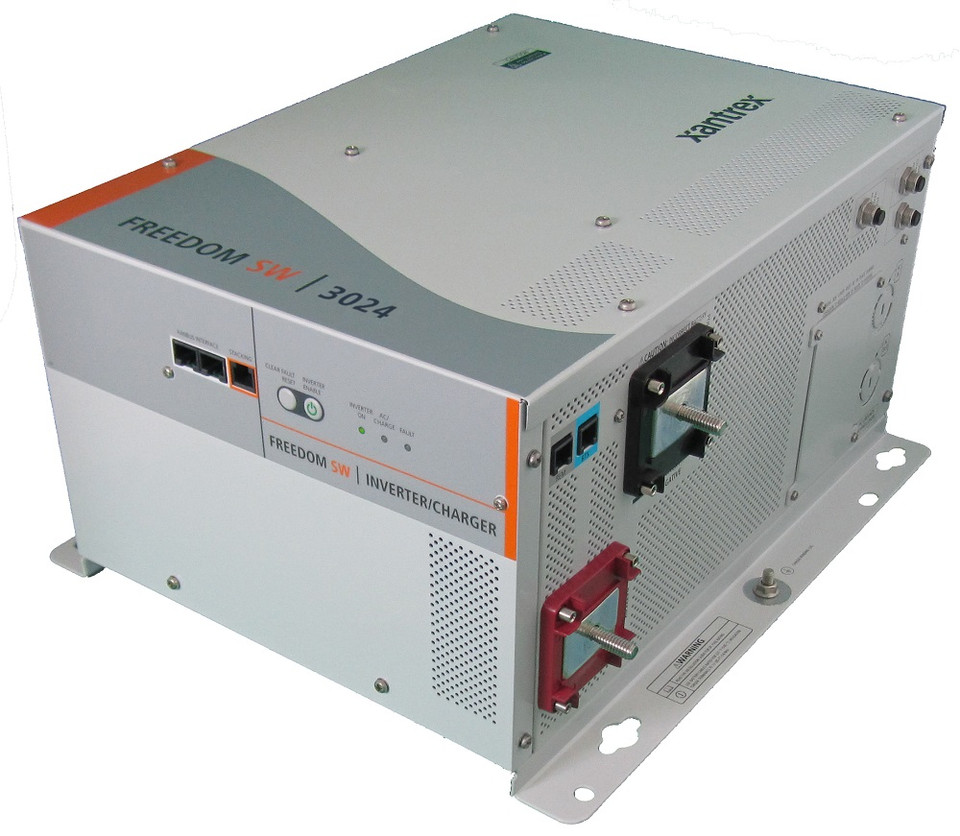

Xantrex SW3024 24v 3000W Inverter Charger
Model: 815-3024- Pure sine wave output in two 24-volt
- Parallel stacking capability to double the inverter power output
- Series stacking capability enables operation of 240 Vac applications
- Advanced configuration options for customized applications*
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- Power factor corrected, multi-stage charger for fast, efficient charging
- Temperature compensated charging for a vareity of climate conditions
- Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power**
- Wide operating temperature range
- Conformal coated circuit boards for humid environments
- Dual input / Dual output AC interface (3000W model)
- Compatible with the Xantrex Automatic Generator Start*** (Part# 809-0915)
- Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements
The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.
The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.
The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.
*A System Control Panel is required for all system configuration and setup **When used with the remote panel ***Sold separately
Specifications| Electrical Specifications Inverter | |
| Output power (continuous at 40°C) | 3000 W |
| Surge rating (5 seconds) | 6000 W |
| Peak output current | 75 A |
| Output frequency | 60 Hz +/- 0.2 Hz |
| Output voltage | 120 Vac |
| Output wave form | Pure sine wave |
| Optimal efficiency | 94% |
| No-load power draw (inverting) | < 1.5 Adc |
| Input DC voltage range | 20 - 32 Vdc |
| AC connections | Split phase in / dual out |
| Electrical specifications charger | |
| Output current (continuous at 25°C) | 75 A |
| Output voltage | 24 Vdc |
| Output voltage range | 12 - 32 Vdc |
| Charge Control | 3 stage with manual equalize |
| Charge temperature compensation | Remote battery sensor (included) |
| Efficiency | > 85% |
| AC input power factor (maximum charge) | 0.95 typical |
| Input current (for maximum charging) | 22 A rms nominal |
| Input AC voltage | 120 Vac |
| Input AC voltage range | 85 - 140 Vac |
| Dead battery charge | > 12 Vdc |
| General Specifications | |
| Compatible battery types | Flooded / Gel / AGM |
| Transfer relay rating | 2 legs at 30 A each |
| Transfer time (AC to inverter and inverter to AC) | < 20 ms |
| Operating temperature range (full power) | - 4°F to 104°F (- 20°C to 40°C) |
| Storage ambient temperature range | - 40°F to 185°F (- 40°C to 85°C) |
| Unit dimensions (H x W x L) | 7.75 x 13.5 x 15.25" (197 x 343 x 387 mm) |
What's in the Box:
- SW3024
- Documentation
- battery Temperature sensor
- DC terminal covers (one red, one black) with two sets of #6-32 screw
- Xanbus network terminator x 2
- 5/16"-18 nuts and washers for the DC terminals x 2
