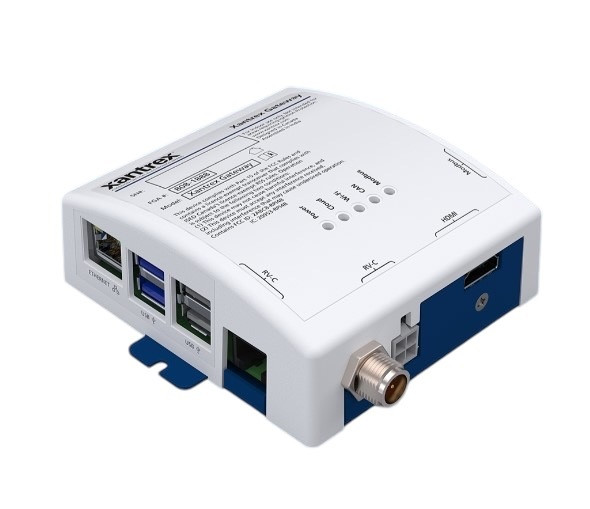

Xantrex Gateway Communication Device
Model: 808-1888- Real-time update on the app
- Replace multiple displays with one
- Error alerts to monitor performance
- Coordinated system control
No more compatibility issues or complex setups. Xantrex Gateway gives you power at your fingertips to integrate, monitor, and control all your essential components — batteries, inverter/charger, and solar controller into one seamless system for effortless operation.
Xantrex offers a complete energy system that includes easy to use connectivity. The Xantrex gateway provides a coordinated view and easy drill-down access to control and monitor your system as-a-whole rather than single separate components. Remote monitoring with the WiFi and Bluetooth capabilities makes your life easier than ever before.
Specifications| Input Power Terminals | 2-Pin 16-24 AWG with flying lead and screw down terminal block |
| Input Voltage Range (SELV) | 9—58 Vdc |
| Power Consumption | 6.5 W excluding USB outputs |
| RV-C | RJ-45, 4-Pin Molex style connector |
| CAN | Micro-C Male |
| Modbus RS-485 | RJ-45 |
| HDMI | Standard |
| USB | 2 x USB 2.0, 2 x USB 3.0 |
| Wireless | Bluetooth, WiFi, WiFi Access Point |
| Housing / Mounting System | ABS Plastic, Wall-mount: 2-screw |
| IP Rating / Mounting Location | IP 20, NEMA Type 1, Indoor only |
| Temperature | Operating: -4—122 degrees F (-20—50 degrees C) - Storage: -40—185 degrees F (-40-85 degrees C) |
| Humidity | Less Than 95 percent, non-condensing |
| Dimensions (L x W x D) | 4.5 x 4.3 x 1.5in (114 x 111 x 38 mm) |
| Weight | 0.6 lb (300 g) |
