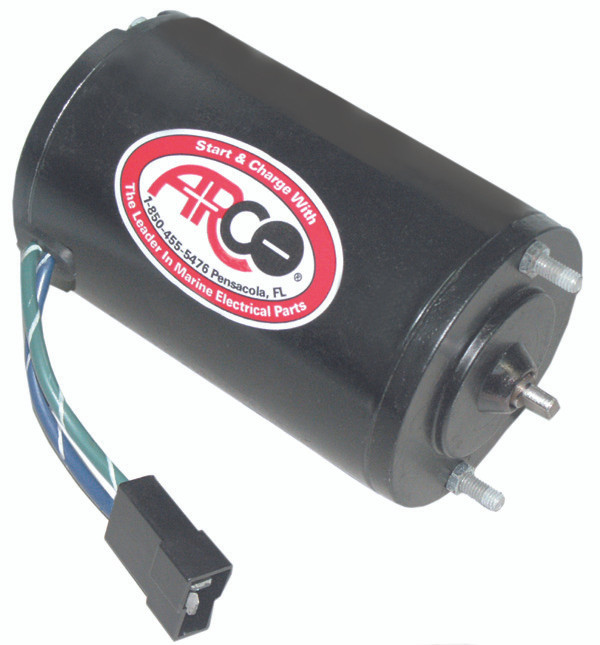

The tilt and trim mechanism allows you to improve the boat's performance by modifying the engine's angle, which improves the boat's running surface. Tilting and trimming your motor enhances boat performance in different conditions, from smoothing out a harsh ride in strong seas to reducing drafts in shallower waters. The VOLVO TILT/TRIM MOTOR (6232) fits the late-model of VOLVO PENTA. The motor is mounting thru-bolts are 2.5" apart on the center and have a fine thread (10/32) with an oildyne pump.
Key Features
-
Epoxy Powder coated for maximum corrosion protection
-
Motor shafts induction case strengthened at bearing surfaces for increased wear resistance
-
Replaces Part Numbers VOLVO 854525-3, VOLVO 3151278, VOLVO 3858071, SIERRA 18-6817, and SIERRA 18-6805
-
The structure was precision tested to sustain 50 times the operating voltage (12V)
-
The engine performance tested at five different load levels
-
Meet or exceed OEM performance
-
2-wire connection, the ring is included.
Specifications
-
BRAND: ARCO MARINE
-
SKU:6232
-
UPC:693006002965
-
Weight:4.00 LBS
Motor only. 2-wire connection. Fits: ARCO 6227, late model Volvo Penta with Oildyne pump
This product replaces:
- 6232, 57-6232, 693006002965, 854525-3, 854437
