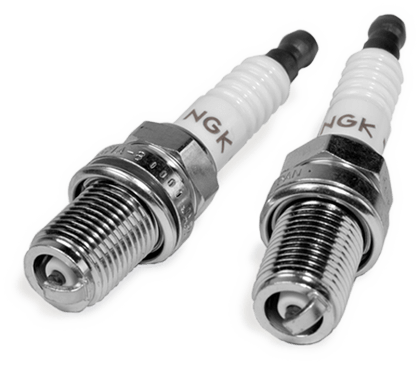

These spark plugs provide high ignitability and longer service life. Laser welded dual platinum surfaces ensure a slow wear rate providing stable idle, improved fuel efficiency, superior anti-fouling, and lower emissions.
Key Features:
-
Laser welded Platinum center electrode tip
-
The Platinum disc welded to the backside of the ground electrode provides long service life
-
Trivalent Metal Plating provides superior anti-seizing properties and anti-corrosion
-
Faster starts and quicker acceleration
-
Original Equipment Manufacturer (OEM) approved design.
Specifications:
-
SKU: 86-7696
-
Weight: 0.15 LBS
-
UPC: 087295076965
-
Manufacturer Part Number: 7696
-
Model: Laser Platinum Spark Plugs - PZFR6H
-
Assembled Product Dimensions (L x W x H): 3.30 x 1.00 x 0.90 Inches
-
Resistor: Yes
-
Resistor Value: 5k Ohm
-
Heat Range: 6
-
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
-
Shell
-
Thread Diameter: 14mm
-
Thread Pitch: 1.25mm
-
Seat Type: Gasket
-
Reach: 19mm (3/4")
-
Hex Size: 5/8" (16mm)
-
Terminal Type: Solid
-
Overall Height: ISO
-
Gap: .031" (0.8mm)
-
Center Electrode
-
Material: Platinum
-
Type: Fine Wire
-
Size: 1.0mm
-
Projection: Extended Projection
-
Ground Electrode
-
Material: Platinum
-
Type: Standard
-
Quantity: 1
