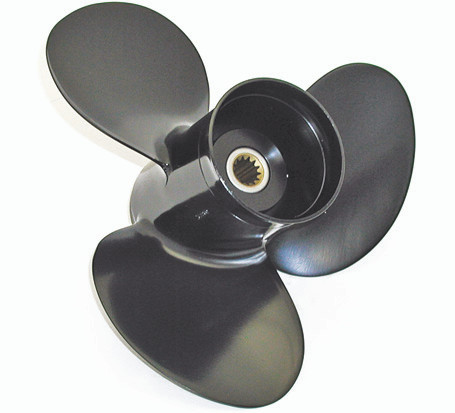

A rubber-replaceable hub system is with every boat propeller of this model. It is designed to decrease chatter and vibration, which are common in competitive hub systems. The hub kit included has no plastics to decay because it is rubber-made. It can deflect 10% for softer shifting and lessens prop shaft shock when the propeller collides with something submerged. In the propeller, the hub kit will not spin. The hardware required to attach the propeller to the prop shaft is included with each hub kit. Unlike other hubs, the propeller nut for this model does not need to be re-torqued regularly. This three-bladed aluminum boat propeller has more powerful blades, improved performance, and exceptional acceleration and top speed.
Key Features:
- Right-hand rotation
- Three-blade boat propeller
- Strong aluminum blades
- Brushed and glossy-finished blade exterior
Product Specifications:
- Categories: Marine Engine Part
- Brand: BRP Evinrude Johnson
- SKU: 765182
- UPC: 824375037566
- Weight: 8.70 LBS
- Material: Aluminum
- Diameter: 13.5
- Pitch: 15
- Hub kit: Included
General purpose & economy
Engine Application
2-Stroke 40-60 Horsepower Two Cylinder Large Gearcase, 55-75 Horsepower Three Cylinder 75-140 Horsepower Four Cylinder
40/50/60 hp (Evinrude?-TEC?©?°04-thru, 45 hp (Commercial)?y86-thru;
50 hp?1971-74;
50 hp (Commercial)?y80-thru;
55 hp (Commercial)?y80-thru;
55 hp?y68-69;
60 hp?y70-71;
60 hp?y86-96;
65 hp?y72-73;
65 hp (Commercial)?y84-2001;
70 hp?y74-2001;
75 hp (large gearcase)?y75-84;
75 hp?°04-thru;
85 hp?y69-80;
85 hp?y91-95;
88 hp?y81-thru;
90 hp?°04-thru;
90 hp?y81-thru;
100 hp?y79-80;
100 hp?y88-thru;
100 hp?°04-thru;
110 hp?y86-89;
115 hp?y73-thru;
120 hp1986-94;
125 hp?y71-72;
135 hp?y73-76;
140 hp?y77-84;
140 hp?y86-94
Attaching Hardware:H25
60-70 Horsepower 4-Stroke
70 hp (Evinrude?& Johnson?4 Cyl.)?y98;
70 hp (Evinrude 4 Cyl.)?y99-2001;
60-70 hp (Johnson 4 Cyl.)?°02-thru
Attaching Hardware:H23
Attaching Hardware
H25
Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
H23
Cotter pin:
Sierra: 18-3735
Flat washer:
Other: 5030441
Nut:
Sierra: 18-3726
Splined spacer washer (aft):
Sierra: 18-3798
Other: 5030925
Splined spacer, washer, nut & cotter pin kit:
Sierra: 18-3774
Thrust washer (forward) 60 hp '02-'03, 70 hp '01-'03:
Other: 5032551
Thrust washer (forward) 70 hp 1998, 2000 TNT (20" shaft):
Other: 5030924
H76
Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
Michigan Wheel: 991210
This product replaces:
- BRP763466, BRP765182, 763466, 824375037566, 765182
