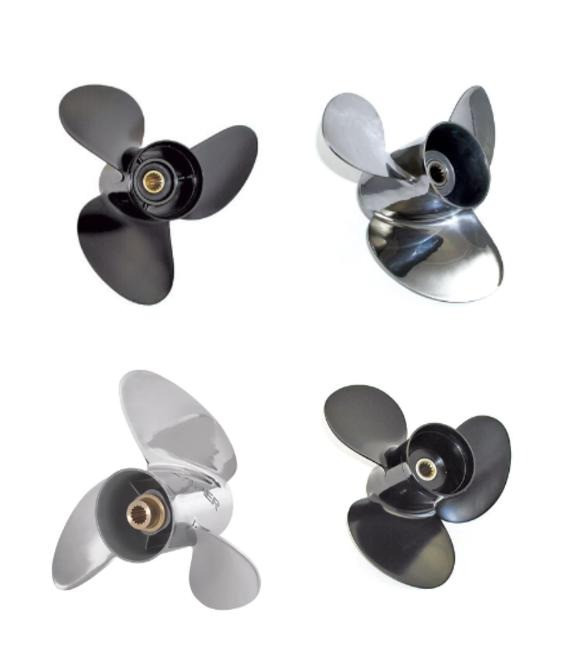

The 13.875 X 13 A3R PROP HYDRUS from Bombardier Recreational Products is a propeller (BRP). It's an aluminum-based material that gets tougher and more robust over time. It's a three-bladed propeller with a right-hand rotation. The calibration of pitch angles was changed to a higher one to increase performance and efficiency by speeding up and channeling water, eliminating slides while enhancing performance and efficiency. It's a tad heavier, weighing in at roughly 8 pounds. For navigational purposes, this weight is a good size. This slant improves the machine's overall performance and boat lift. In each rotation, the prop Hydrus has a diameter of 13.875 inches and a pitch distance of 9 inches.
Key features:
- Vents had been fine-tuning for a lightning-fast hole-shot.
- It increases handling and boat lift by having a steep rake.
- For quicker speeds, a blade design with a high rake is necessary.
- The performance of mid-range outboards has improved.
- The innovative blade profile provides optimal thrust in every water condition.
- Proven to produce superior performance "at work" and elsewhere
Product Details:
- SKU: 177203
- UPC: 824375016790
- Weight: 8.00 LBS
- MATERIAL: Aluminum
- PITCH: 13
Pontoons, high reverse thrust
Engine Application
2-Stroke 40-60 Horsepower Two Cylinder Large Gearcase, 55-75 Horsepower Three Cylinder 75-140 Horsepower Four Cylinder
40/50/60 hp (Evinrude?-TEC?©?°04-thru, 45 hp (Commercial)?y86-thru;
50 hp?1971-74;
50 hp (Commercial)?y80-thru;
55 hp (Commercial)?y80-thru;
55 hp?y68-69;
60 hp?y70-71;
60 hp?y86-96;
65 hp?y72-73;
65 hp (Commercial)?y84-2001;
70 hp?y74-2001;
75 hp (large gearcase)?y75-84;
75 hp?°04-thru;
85 hp?y69-80;
85 hp?y91-95;
88 hp?y81-thru;
90 hp?°04-thru;
90 hp?y81-thru;
100 hp?y79-80;
100 hp?y88-thru;
100 hp?°04-thru;
110 hp?y86-89;
115 hp?y73-thru;
120 hp1986-94;
125 hp?y71-72;
135 hp?y73-76;
140 hp?y77-84;
140 hp?y86-94
Attaching Hardware:H25
60-70 Horsepower 4-Stroke Continued
70 hp (Evinrude?& Johnson?4 Cyl.)?y98;
70 hp (Evinrude 4 Cyl.)?y99-2001;
60-70 hp (Johnson 4 Cyl.)?°02-thru
Attaching Hardware:H23
Attaching Hardware
H25
Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
H23
Cotter pin:
Sierra: 18-3735
Flat washer:
Other: 5030441
Nut:
Sierra: 18-3726
Splined spacer washer (aft):
Sierra: 18-3798
Other: 5030925
Splined spacer, washer, nut & cotter pin kit:
Sierra: 18-3774
Thrust washer (forward) 60 hp '02-'03, 70 hp '01-'03:
Other: 5032551
Thrust washer (forward) 70 hp 1998, 2000 TNT (20" shaft):
Other: 5030924
H76
Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
Michigan Wheel: 991210
This product replaces:
- 824375016790, 175013, BRP175013, BRP177203, 177203
