CDI Electronics has supplied the marine and motorsport industries with value and the lowest cost of ownership. Its mission is to provide excellent ignition and diagnostic solutions to engine users and manufacturers worldwide.

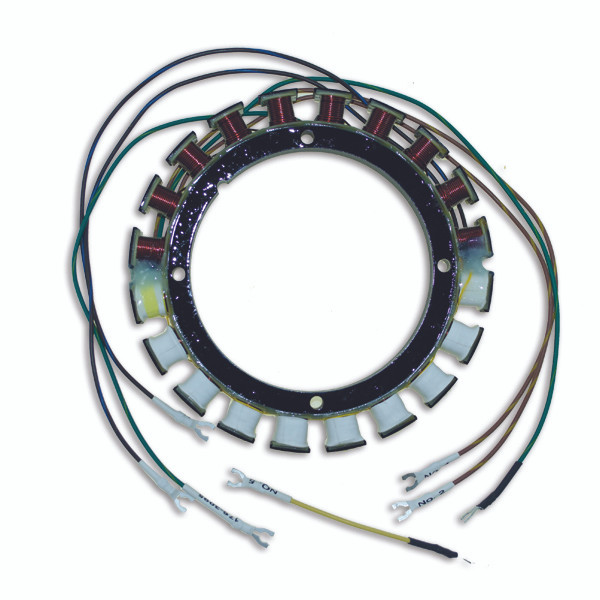

Force Stator - CDI Electronics (176-3095) is the component responsible for generating charging power for your boat's batteries. It is composed of windings that generate alternating current electricity. It is a wire coil found inside the engine case. A magnet attached to a shaft spins within the stator, producing alternating current (AC). That current flows through the casing on very heavy gauge wire and then into the rectifier/regulator, which transforms it to DC power with a steady output.
Key Features:
- Durable and safe, with a high level of performance.
- Designed to survive years of use.
- Engineered to provide the right solution for your boating problems.
- Ensured to outperform substandard alternatives.
- Designed to endure the most difficult sea conditions.
Specifications:
- Brand: CDI Electronics
- SKU: 176-3095
- UPC: 736983852526
- Weight: 2.60 LBS
- Alternate Products SKU: "888793", "176-3095"
- Manufacturer Part Number (MPN): 176-3095
- This product replaces: 663095-1, 663095, 667-1763095, 653095, 663095-2, 663095-4, 663095-3, 658095, 694095-2, 721095-1, 721095-2, 722095, 736983852526, 695095-2, 721095, 695095, 694095-1, 694095, 695095-1, F663095, F653095, F653095-1, F633095, F653095-2, F663095-4, F694095-2, F663095-2, F658095, F721095-1, F663095-1, F695095, F633095-3, F721095, F633095-2, F722095, F633095-1, F663095-3, F653095-3, 300-F663095, 300-F663095-4, 300-F694095-2, 300-F695095, 300-F721095, 300-694095-2, 300-663095-4, 300-663095, 300-F721095-1, 300-F722095, 300-F658095
1984-1992 (50HP - 2 Cyl.) 1987-1991 (85 & 90HP - 3 Cyl.) 1986-1991 (120 & 125HP - 4 Cyl.) 1989-1992 (150HP - 5 Cyl.)
This product replaces:
- 663095-1, 663095, 667-1763095, 653095, 663095-2, 663095-4, 663095-3, 658095, 694095-2, 721095-1, 721095-2, 722095, 736983852526, 695095-2, 721095, 695095, 694095-1, 694095, 695095-1, F663095, F653095, F653095-1, F633095, F653095-2, F663095-4, F694095-2, F663095-2, F658095, F721095-1, F663095-1, F695095, F633095-3, F721095, F633095-2, F722095, F633095-1, F663095-3, F653095-3, 300-F663095, 300-F663095-4, 300-F694095-2, 300-F695095, 300-F721095, 300-694095-2, 300-663095-4, 300-663095, 300-F721095-1, 300-F722095, 300-F658095
