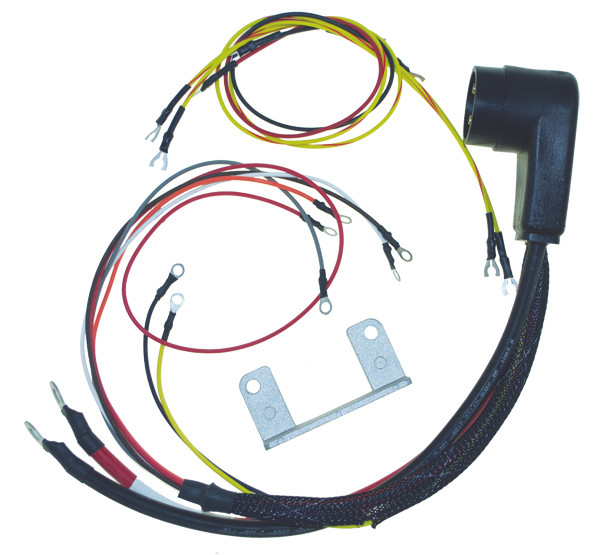

The MERCURY HARNESS 115 Horsepower (414-2770) is a high-quality internal engine wiring harness under the engine hood/cowling for Mercury outboard. It is an organized set of wires, cables, connectors, and terminals that controls the motor's electrical system. It relays electrical power to outlying components. Each wire color has its specific function/connection (see specifications).
Key Features:
- Top-quality internal engine wiring harness
- 100% Brand new and original engine parts made with the highest quality materials in the industry with zero fault production
- Controls motor's electrical system
- Relays electrical power to outlying components
- Higher electrical capabilities
- Built to perform
- Compact. Easy to store, carry and install.
- Designed to provide maximum convenience and comfort
- Proven and tested for its exceptional dependability throughout the manufacturing process to ensure it meets our standards for quality
- Approved marine-grade product
Specifications:
- Brand: CDI Electronics
- Condition: Brand New
- Item Number: 414-2770
- Weight: 1.30 LBS
- Black (4 AWG): Engine Ground
- Black (18 AWG): Negative Terminal on Starter Solenoid
- Yellow: Start Terminal on Starter Solenoid
- Gray: Choke Solenoid
- Orange: Kill Circuit for ADI- Not Used
- White: 12V From Key-switch
- Yellow/Red Stripe: (2) Rectifier to Stator Term Block Jumpers
- Brown: Tachometer Signal
- Red (4 AWG): Battery Side of Starter Solenoid
- Red (18 AWG in Harness): POS (+) of Rectifier (May not be needed)
- Red Jumper: Connect the positive post of the Rectifier to the red wire on the switch box
Note:
- For marine applications
- For 1970-1981 20 and 40 HP (2 cylinder), 1967-1975 50, 65, 80 and 85 HP (4 cylinder), 1966-1979 90, 95, 100, 115, 125, 135, 140 and 150 HP (6 cylinder)
1970-1981 (20 & 40HP - 2 Cyl.) 1967-1975 (50,65,80 & 85HP - 4 Cyl.) 1966-1979 (90,95,100,115,125,135,140 & 150HP - 6 Cyl.), Harness Exits Through the Side of the Lower Cowling
This product replaces:
- 56370, 667-4142770, 59741, 66297, 62534, 66055, 71443, 69236, 736983854476, 38072, 37628, 39177, 38920, 46463, 46285, 46905, 48150, 52771, 52770, 52771A1, 49370, 52820, 52769, R56370, 74904, 84-71443A1, 84-71443, 84-69236A1, 84-69236, 84-66297A1, 84-66055A1, 84-73826A1, 84-66297, 84-66055, 84-73826, 84-74904, 84-74904A1, 84-46463, 84-62534, 73826
