The ignition system on your Johnson outboard boat motor is centered on the power pack. The power pack provides voltage to the ignition system's power coils. A defective or dead power pack can cause troubles starting your Johnson outboard. To check a Johnson Power Pack, connect each of the multimeter's leads to the ends of the orange wires that flow from the power packs to the ignition coils ?ö connect the positive to the orange wires and the negative to the ignition coil's negative terminal (-). A voltage reading of at least 150V is required.
Key Features:

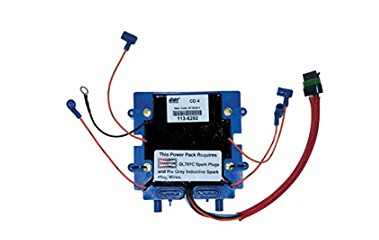

- Power Pack Kit for Johnson/Evinrude
- From 1995 to 2006, this part fits 80 JET, 90, 100, 105 Comm, and 115 HP four-cylinder engines.
- This product replaces 667-1136292K, 1, 736983850485, 113-6292K1, and 113-6292K
- 113-6292, 133-6343, and 931-4922 are in the kit.
Product Specifications:
- SKU: 113-6292K1
- UPC: 736983850485
- Weight: 1.92 LBS
- Manufacturer Part Number (MPN): 113-6292K 1
- Quantity: 1
1995-2006 (80 Jet,90,100,105 Comm & 115HP) 60 Degree Engines, w/ Quick Start & S.L.O.W., 6400 RPM Limit. Includes: 113-6292, 133-6343 & 931-4922
This product replaces:
- 667-1136292K, 1, 736983850485, 113-6292K1, 113-6292K
