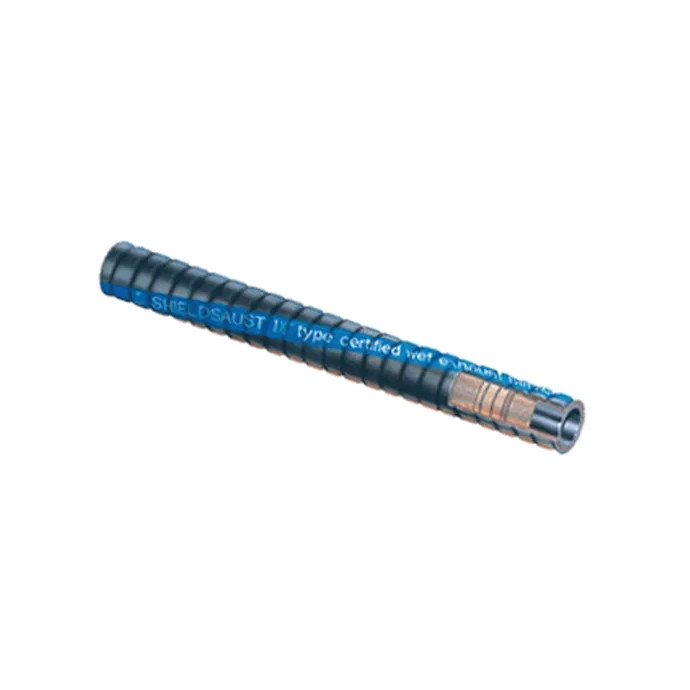

The 2" EXST - CORR COIL (50/PK) is for wet combustion connections with substantial bends, engine intake, and scupper lines. This Corrugated coil is for water combustion, wet intake manifold connections, bilge pump intake/discharge, scupper drain, lavatories, and retaining tank vent/pump-out applications. Its black composite material tube and covers with a double wire helix inserted between layers of synthetic cord, providing double the ozone tolerance required to fulfill SAE J2006 Type R2 specifications. A high-quality product designed to withstand engine heat, exhaust fumes, ozone, mild chemicals, antifreeze, and seawater. This 2-in. Shieldsaust-C corrugated maritime exhaust/water hose has a large internal diameter and is suited for connections in wet ventilation systems where bends are required.
Key Features:
- 2 7/16 in. dimension exterior
- An exterior double wire helix inserted between the hose plies supports the hose.
- Made of black synthetic rubber with a strong wall
- 2-composite cord plies
- Range of temperature is -20F to +200F continuously, +250F intermittently
- The radius of curvature is equal to 4 times the hose ID.
- It has Lloyd's Register Type Approval and satisfies SAE J2006 Type R2 requirements.
Specifications:
- SKU: 16-252-2000-PK
- UPC: 030999541536
- Weight: 0.95 LBS
- Brand: SeaStar Solutions
- Condition: New
Primarily used for wet exhaust connections with significant bends, engine intake and scupper lines. Black Synthetic rubber tube and cover, reinforced with double wire helix imbedded between plies of synthetic cord. Double the ozone resistance required, meets SAE J2006 Type R2 standards
This product replaces:
- 88-2522000, 116-252-2000, 16-252-2000, 30999541536
