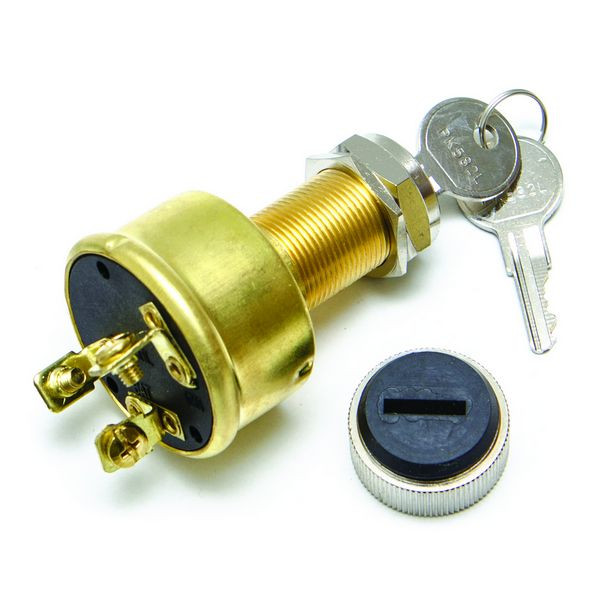

Most outboard motors run and started using key ignition switches. The BRASS IGN. SWITCH MP39080-1 by Sierra s a three-position Conventional, Switch Positions: Off - Run - Start with 3 Screw Tab. The Ignition Switch fits a standard 7/8"diameter hole, and the Terminal type is 3 Screw Tab with a length of 1 1/8? maximum panel thickness. The Brass construction provides ultimate corrosion protection and has excellent electrical conductivity.
Key Features
-
The Brass construction gives maximum corrosion protection and eliminates oxidation
-
Non-conductive housing eliminates potential shorts
-
Durable Ignition switches that can withstand the harsh marine environment.
-
Up to 15 Amp rating
-
Three-position conventional switches
-
Replaces 49-39081, 49-39080, MP39082-1, MP39082, MP39080, MP3908, 808282201166, 11-MP39080-1, 2312139080
Specifications
-
BRAND: SEASTAR SOLUTIONS
-
SKU: MP39080-1
-
UPC:808282201166
-
Weight:0.50 LBS
-
Material:Brass
-
Terminal Type: 3 Screw Tab
-
Back-Up Nut:Brass
-
Face Nut:Knurled black plastic w/rubber cap
-
Hole Size: 7/8?
-
Position:OFF-Run-Start
-
Ignition: 15 Amp @ 12v DC
-
Solenoid: 30 Amp @ 12v DC
3 Position Conventional, Switch Positions: Off - Run - Start, Terminal Type: 3 Screw Tab, Terminal Type: 3 Screw Tab, Brass
This product replaces:
- 49-39081, 49-39080, MP39082-1, MP39082, MP39080, MP3908, 808282201166, 11-MP39080-1, 2312139080
