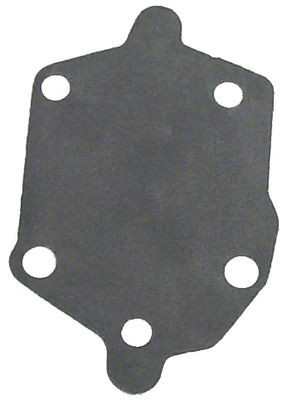

FUEL PUMP DIAPHRAGM - 18-7834 a composite membrane used in diaphragm pumps flexes up and down over a fuel bowl. The bowl contains an input and an output with check valves to guarantee that fluids only flow in one direction. A vacuum is created as the diaphragm rises, drawing fuel from the fuel tank into the fuel bowl. The diaphragm pump draws fuel from the tank, so if you run out, it will quickly draw new fuel into the pump and the engine without priming.
Key Features:
- It fits Mercury 2B, 4A, and 5C; Yamaha 2-Stroke 4; and 5.
- Manufactured for use with Yamaha's 4- and 5-HP (2-Stroke) outboard motors from 1984 to 2002.
- Designed for use with Mercury outboard motors 2B, 4A, and 5C
- Each kit comes with one fuel pump diaphragm.
Specifications:
- Brand: Sea Star Solutions
- SKU: 18-7834
- UPC: 030999323088
- Weight: 0.01 LBS
- Unit Of Measure: EA
- Alternate Products SKU: "91748M", "REC6E0-24471-00", "18-7834"
- Manufacturer Part Number (MPN): 118-7834
- This product replaces: 6E0-24471-00, 6E0-24471-00-00, 6E024471-00-00, 47-7834, 3099932308, 30999323088
Fits Yamaha 2-Stroke 4 (1984-1999), 5 (1984-2002); Mercury 2B, 4A, 5C
This product replaces:
- 6E0-24471-00, 6E0-24471-00-00, 6E024471-00-00, 47-7834, 3099932308, 30999323088
