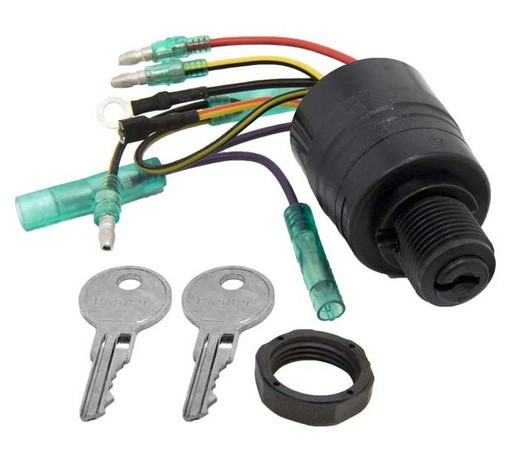

Most outboard motors require a key to operate the ignition switch, similar to what vehicles do. The ignition switch has three rotational states, denoted by the legends OFF (most counter-clockwise), ON or RUN, and START (most-clockwise). Sea Star Solutions' ignition switch has three positions (Off-Run-Start) and a Push to Choke. The face nut is Hex Black Plastic, and a backup nut is not required.
Key Features:
- This product also replaces MP51092, 808282269067, 11-MP51090
- 6 Color Coded Wire Leads/Potted Terminal
- Made with premium materials (Polyester) that contain durability and longevity
- Minimal circuit bleed, molded umbrella type key, non-conductive casing minimizes potential shorts
- Maximum corrosion protection - eliminates oxidation by forming an inner seal between the cylinder lock and the contact plate
- Rated solenoid: 30 amps @ 12 volts direct current - Rated ignition: 15 amps @ 12 volts direct current - Rated choke: 7 amps @ 12 volts direct current
Specifications:
- BRAND: Sea Star Solutions
- SKU: MP51090
- UPC: 808282269067
- WEIGHT: 0.32 LBS
- HOLE SIZE: 7/8"
- LENGTH: Short: 5/8" maximum panel thickness
- Material: Polyester
3 Position Magneto, Push to choke, Switch Positions: Off-Run-Start. Terminal Type: 6 color code wire leads/potted, Material: Polyester
This product replaces:
- MP51092, 808282269067, 11-MP51090
