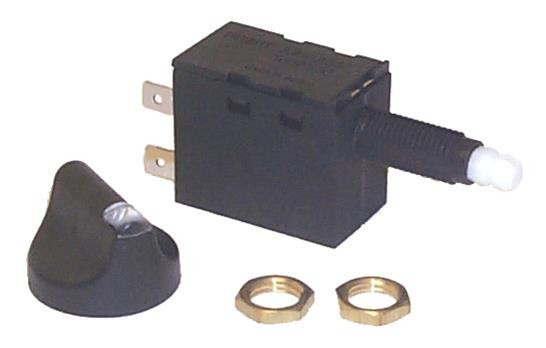

The Sierra Rotary Switch is a one-of-a-kind ergonomic design, appearance, and performance. The long-life secures by the sturdy cam design, and the thermoplastic housing is UV stabilized. Replaces toggle or rocker switches with small panel adjustments, 1/2" hole size, and optional light modules. It even replaces toggle switches with minimal panel modifications.
Key features:
-
Switch Function: On-Off-On Double Pole, Rated: 20 Amp @ 12 Volt, Style: ROTOSWITCH
-
Rotoswitch delivers light in various colors, offering instant visual feedback on the switch position.
-
One design combines ergonomics, aesthetics, and performance.
-
Twenty amps at 12 volts direct current.
-
It is a Long-lasting cam design.
-
UV-resistant thermoplastic housing.
-
The knob serves as an umbrella, and the silicone lip seal matches the stalk.
-
Optional separate light modules.
-
With minimum panel modifications, it replaces toggle or rocker switches.
-
On in parentheses (On) denotes a temporary position.
On -45??:
Off at 0??
45 degrees: On
+90??: -
Specifications:
-
SKU: MP78800
-
UPC: 808282368326
-
Weight: 0.16 LBS
-
This product replaces:
-
49-78800, MP78800, 808282368326, 11-MP78800
-
Switch function: On-Off-On Double Pole
-
Style: ROTOSWITCH
-
Rated: 20 Amp @ 12 V
-
Number of battery feeds: 1
-
Hole size: 1/2"
-
Brand: SeaStar Solutions
-
Manufacturer: Sierra Marine Engine
-
Switch Type:Rotary Switch
-
Item Dimensions (L x W x H):3.18?C 1.75?C 6.81?²ópan>
-
Mounting Type: Pole
-
Actuator Type: Rotary
-
Unit Count: 1.0 Count
-
Number of Items: 1
-
Type : DPDT
Style: ROTOSWITCH, Switch Function: On-Off-On Double Pole, Rated: 20 Amp @ 12v
This product replaces:
- 49-78800, MP78800, 808282368326, 11-MP78800
