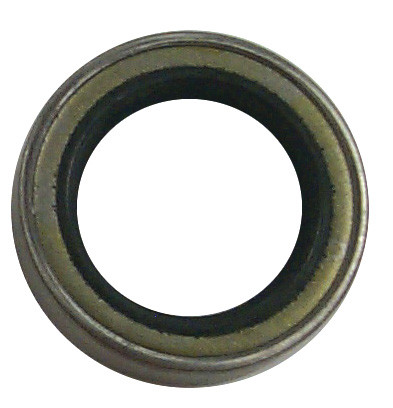

Oil seals protect shafts and bearings from dirt and foreign matter entry like oil or grease outflow. An oil seal is an exterior circular metal portion and an inside flexible member that does the actual sealing and is connected to the metal part. The oil seal's metal shell is mild steel with a deep drawing quality that allows blanking, punching, and stamping to the specified dimensions.
Sierra Marine engine components are built to meet OEM specifications, and they are backed by SeaStar Solutions, one of the finest in the industry.
Key Features:
- The Mercury Oil Seal has no unsecured pieces that could allow oil to escape or contaminants to enter.
- There's a lower chance of fretting corrosion.
- It is permissible to have a rougher bore surface.
- Fitting stability is excellent, preventing seal pop-out.
- For pricey elastomer materials, this method is cost-effective.
Specifications:
- SKU: 18-2052
- UPC: 030999310033
- Weight: 0.03 LBS
- OD: 1314" or 334mm
- Shaft Size: 0875" or 222mm
- Width: 0322" or 82mm
O.D.: 1.314" or 33.4mm, Shaft Size: 0.875" or 22.2mm, Width: 0.322" or 8.2mm
This product replaces:
- 47-2052, GLM85520, 26-69189, 92-85520D, AP282, 30999310033, 9-76114
