Toggle switches are among the most fundamental and widely used electrical components. It moves contacts that either allow a passage for current to flow through or shift those contacts. It is so that the path cuts.
A toggle switch is an electrical switch that opens or shuts an electrical circuit by moving a lever back and forth. Toggle switches' functions may differ slightly from one another based on their settings. However, the fundamentals remain the same. When the actuator (the toggle) moves, the switch's armature moves the contact into position, either energizing or de-energizing the circuit. When the button changes from one situation, it usually stays in that position.

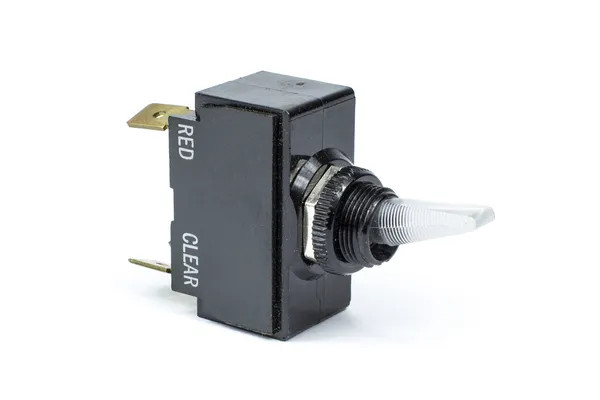

Key Features:
-
Has illuminated handle
-
When the panel light turns on, it illuminates white
-
It illuminates the color red when the switch turns on
-
The plastic structure is non-corrosive, with brass blade terminals and silver contacts
Product Specifications:
-
Brand: SeaStar Solutions
-
SKU: TG40060
-
UPC: 023121400603
-
Weight: 0.09 LBS
-
Material: Plastic
-
Terminal: Spst
-
Current Rating: 20 Amps
-
Length : 15/32"Lx15/32"-32 mounting stem
-
Rating: 20 amps @ 12 VDC
-
Style: Illuminated Std Toggle
-
Switch Positions: ON-OFF SPST
-
Manufacturer Part Number (MPN): TG40060
-
Replaces Products: 49-40060, 49-40061, TG40062, TG4006, 808282368432, 11-TG40060, 18-1867, 2312140060
Illuminated Handle. Switch Positions: ON-OFF SPST, Rating:20amps@12VDC, Non-corrosive plastic construction, brass blade terminals, silver contacts
This product replaces:
- 49-40060, 49-40061, TG40062, TG4006, 808282368432, 11-TG40060, 18-1867, 2312140060
