The switch box sets a voltage threshold for the ignition circuit wherein the capacitor discharges to the ignition coil. Stator coils supply the voltage to the ignition coil -the high and low speed on the mercury. This trigger sets the electronic firing sequence identical to a rotor function in a vehicle at an average of 125 volts for a steel flywheel while cranking.
Key Features:
-
Fits model: Marine, Mariner, Mercury
-

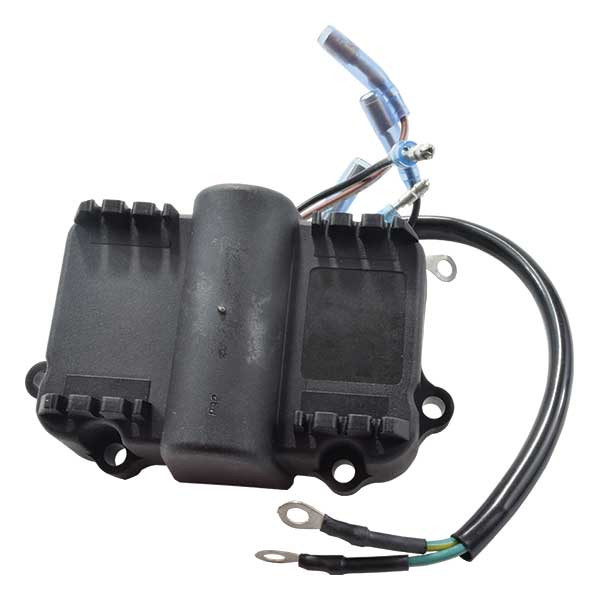

Outboard Powerpack Ignition Switch Box for Mercury 6 to 35 horsepower (1980 to 1997)
-
Heavy gauge, one of the most durable made for easy use
-
Highest rated switch box in the market
Product Specifications:
-
Brand: EMP Engineered Products
-
SKU: 300-33900
-
UPC: 840080485522
-
Weight: 0.69 LBS
-
Width: 4.00 inches
-
Height: 4:00 inches
-
Depth: 4:00 inches
-
Alternate Products SKU: "7452A19", "REC339-7452A19", "18-5777", "114-7452K1", "300-33900"
-
Manufacturer Part Number (MPN): 300-33900
-
Replaces products: 840080485522, Mercury 7452A7, 7452A9, 7452A15, 7452A19, 339-7452A1, 339-7452 10, 339-7452 11, 339-7452 7, 339-7452 8, 339-7452 A14, 339-7452 A21, 339-7452A19; Mercury/Mariner 2-cylinder, 6 to 25 Horsepower outboards
-
Crosses with: Sierra 18-5777, CDI 114-7452K1, and Mallory 9-25102
-
Compatible with: Mercury Mariner 2-cyl 6 to 25 horsepower outboards
-
Product Category: Ignition, Power packs
This product replaces:
- 840080485522
