HMS Hubs is one of the most well-known names for producing high-quality engine and engine accessory items. They offer custom-engineered machinery to meet your boating requirements.

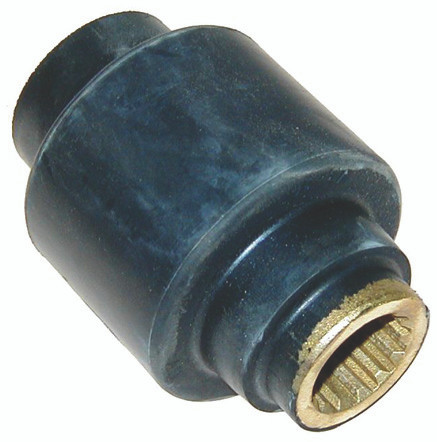

Hub - 13 Spline - HMS Hubs (VS-32) is a cylinder-type component that assists in holding the propeller in position without causing additional damage to your vessel (if it hits something hard while running). The barrel, also known as the boss, is the central spherical component of the propeller. The hub is splined to link the propeller shaft to the prop, comprising the central hub. The propellers and blades are joined here. The exhaust from many propellers passes right through the hub.
Key Features:
- It has been proven to be sturdy and can survive rough marine conditions.
- It boosts the ship's efficiency and dependability.
- It helps lessen shock on the gearcase parts when the drive is switched from neutral to forward or reverse gear.
- If the propeller collides with a hard surface or solid object in the sea, it also protects the drive train.
Product Specifications:
- SKU: VS-32
- UPC: VS-32
- Weight:0.45 LBS
- Spindle length: 2.800" (~2 13/16")
- Flange Dia.: 1.730"
- Rubber O.D.: 2.155"
- Max. Inside Dia.: 0.886"
- Uses Wear Ring: none
- Rubber Duro: 80
- Spline count: 13 spline
Engine Application
Yamaha
Yamaha 40, 50 hp?y84-later;
55, 60 hp?y76-81
This product replaces:
- 732, VS-32, VS-22, VS22, VS32
