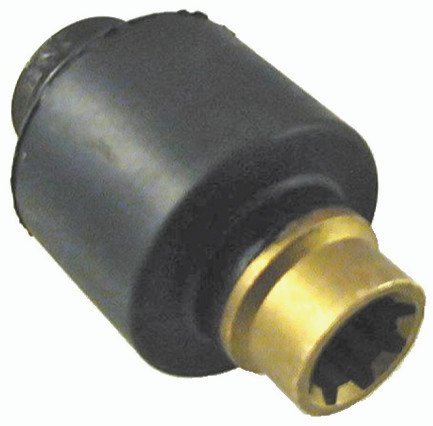

Hms Hubs, Inc (C) Rubber Hub 8 Spline Merc 20 Vs-01

This excellent, uncomplicated, long-lasting, and well-made Mercury outboard offset hub. The slot at the spindle's tip takes an acorn-style prop driver; it's pretty tiny. The spindle fits all Mercury outboards with a 2 12" long spindle with eight splines and no prop driver. Typically found in 1965 to 1983 and some 1984 to present 200's and 250's. The angle or offset is +5 degrees. The spindle length is 2 1/8 inches (2 1/2 inches if you include the height of the prop driver.) O.D. at spline end is 1 3/16 inches.

Key features:

• Fit many other applications, including Yamaha, Volvo Penta, Suzuki, and others

• High-quality yacht part that is built to last

• Provides excellent performance and outstanding durability

Specifications:

• Spindle length: 2.120" (~2 1/8")

• Rubber O.D.: 1.340"

• Max. Inside Dia.: 0.461"

• Uses Wear Ring: none

• Rubber Duro: 70

• Brand: HMS hubs

• Manufacturer's Part Number: VS-1

Engine Application

Mercury

This product replaces:

VS-1, VS01, VS-01, vs1, vs-1, VS1
