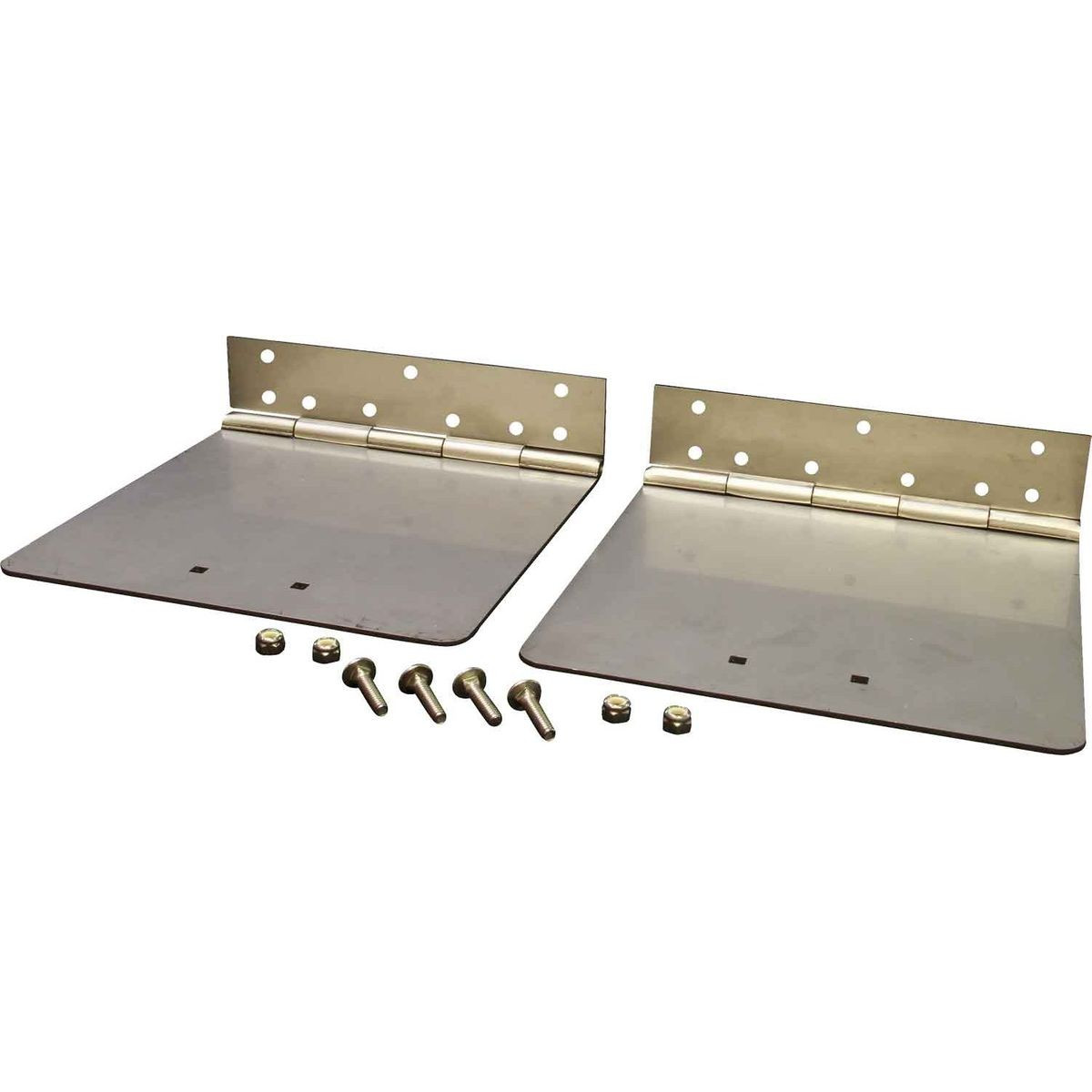

The stainless-steel trim tab design from Lectrotab offers unrivaled strength and dependability. A continuous rolled and pinned hinge is for all stainless-steel tabs. Welding is not necessary with this design. The tabs are corrosion-resistant 12-gauge 304 stainless steel and come in three finishes: normal, mirror, and black powder-coated.
Key Features:
- 12-gauge 304 stainless steel is strong and corrosion-resistant.
- The continuous rolled and pinned hinge adds strength while removing the need for welding.
- Standard chord lengths are 9" (23cm) and 12" (30cm), with widths ranging from 9" (23cm) to 48" (122cm) (122cm)
- Custom lengths and widths of chords are also available.
- There are two actuator mounting options.
- Available with black powder-coated or mirror finishes.
- Zinc anodes improve galvanic corrosion resistance.
- For tabs wider than 24", a bent trailing edge is required.
- The actuator is mounted to the tab by carriage bolts and nuts.
Specifications:
- SKU: T9X9
- Weight: 1.00 LBS
- Manufacturer Part Number (MPN): T9X9
