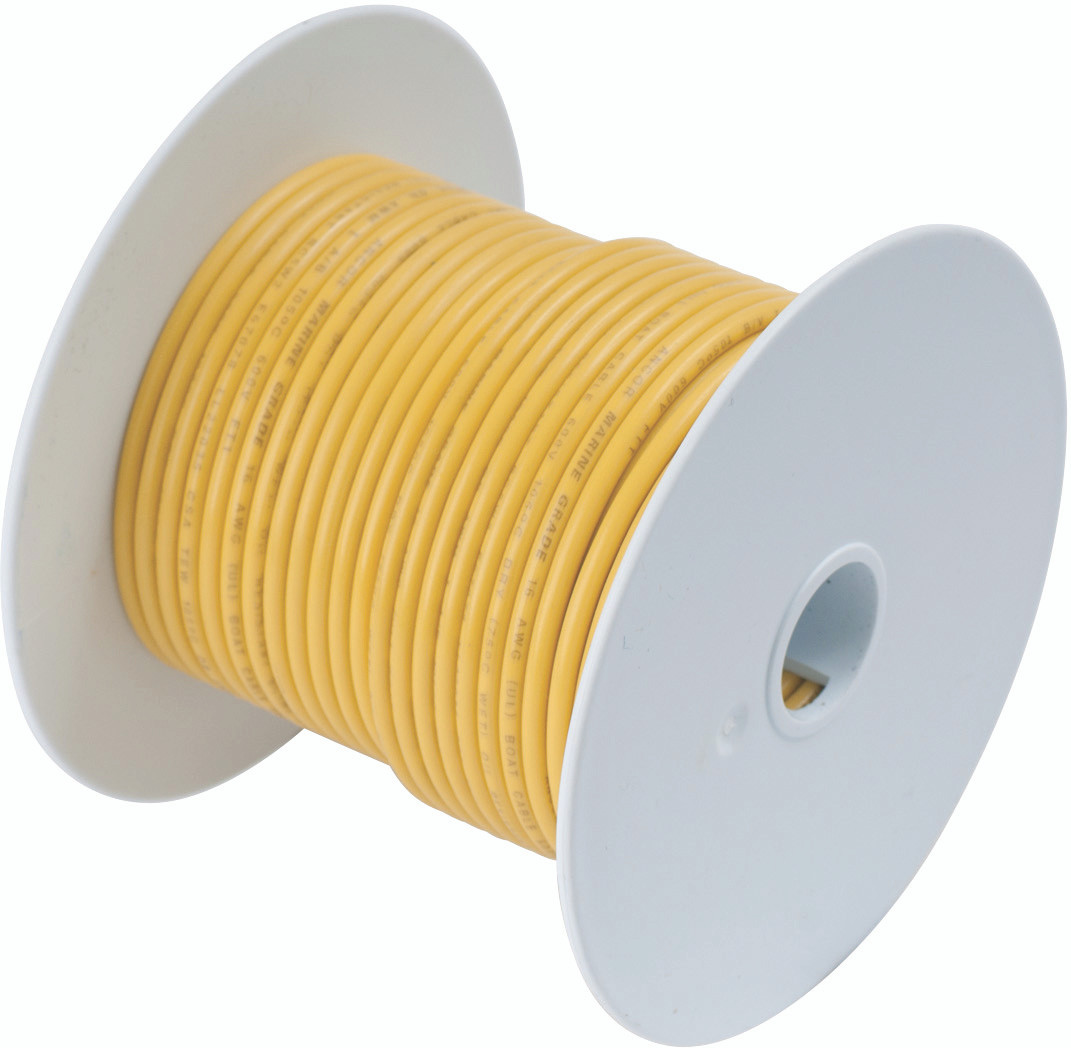

The 100-ft YELLOW #16 PRIMARY WIRE (1-103010) is a high-quality, durable, and reliable tinned copper construction carefully formulated to meet standard marine-grade performance. This wire has ultra-flexible type-3 copper standing that withstands even the harshest marine environment. It resists bending and fatigue, and, most significantly, it provides optimal corrosion and electrolysis protection, allowing it to stay longer in service. It is built of high-quality materials and can withstand temperatures as low as -40??C.
Key Features:
- Designed with tinned copper stranding for enhanced corrosion and electrolysis resistance
- Vibration and flexing fatigue is not a problem with ultra flexible (Type 3) stranding.
- Resists salt water, battery acid, oil, gasoline, and ultra-violet radiation while remaining flexible in extreme temperatures (-40??C).
- Crafted with care to meet your specific boating requirements
- Made from high-quality materials and engineered to exacting specifications
- Excellent performance and a long operational life
Specifications:
- SKU: 1-103010
- UPC: 091887103748
- Weight: 1.50 LBS
- Length: 100?Ö
- Color: Yellow
- Size: 1 mm??
- Material: Tinned Copper
- Wire Gauge: 16 AWG
- Brand: Ancor
- Condition: New
- This product replaces 639-103010, 91887103748
MARINE GRADE?à16 AWG (1MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 1/8" (3.2mm) |
| Wt./1000' | 16 lbs. (7.3 kg) |
| Stranding | 26 of 30 AWG |
| Cir. Mil Area | 2600 |
| Square mm | 1.31 |
| Ohms/1000' | 4 |
This product replaces:
- 639-103010, 91887103748
