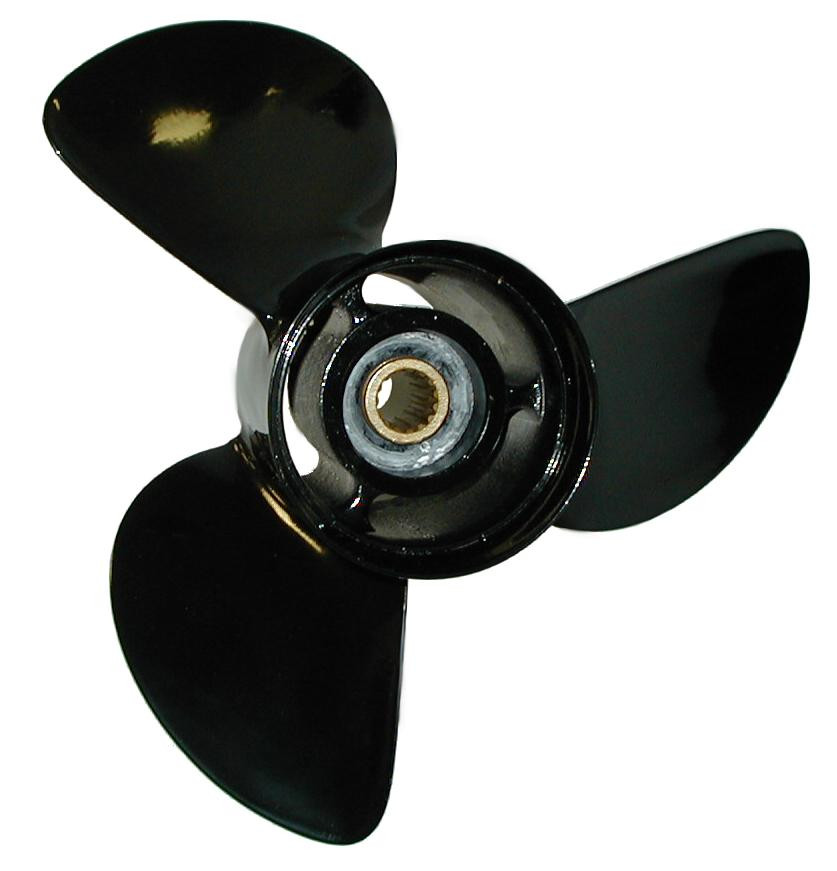

The 15 1/4 X 15 A3R PROP (101025) is a top-quality Aluminium Three Blade Right Hand Michigan Match propeller. A higher-quality, higher-performing propeller. It has a NAVAL brass spindle with a rubber cushioned hub that relieves shock and tension from changing gear direction. Under severe impact, the rubber bushing is engineered to spin free, lowering the risk of unit damage.
Key Features:
- Top-quality Aluminium Three Blade Right Hand Propeller
- Features a NAVAL brass spindle that absorbs impact.
- Powder coating has improved, and the bushing has upgraded.
- Perfect aluminum propeller replacements
- 100% Brand new and made with the Top Quality Materials in the Industry with zero fault production
- Stylish design, excellent performance quality, durability, and high reliability
- Proven and verified for exceptional dependability throughout the manufacturing process to ensure it meets our standards for quality.
- High-quality materials and precise manufacture
Specifications:
- Brand: Michigan Wheel Marine
- Condition: Brand New
- Item Number: 101025
- Weight: 6.00 LBS
- Material: Aluminum
- Blade Quantity: 3
- Diameter: 15.25
- Pitch: 15
- Spline: 15
- Rotation: Right (R)
- Engine Application: Yamaha 150-300 Horsepower 43/4" Gearcase, Sterndrives 43/4" Gearcase
- Attaching Hardware: H69
Note: This product replaces:
- 6G5-45941-00-98, 6G5-45941-00-00, 14984006712
21'-26' (18-31 MPH)
Engine Application
Yamaha?150-300 Horsepower 43/4" Gearcase
150 hp?y86 & newer;
F150 hp (4-Stroke)?°04 & newer;
175 hp?y84 & newer;
F175 (4-Stroke)?°14 & newer;
200 hp?y84 & newer;
200 hp (VMAX?°01;
F200 (4-Stroke)?°02 & newer;
VF200 (VMAX?HO)?°10 & newer;
220 hp (Special)?y84-85;
225 hp (Excel)?y87-88;
225 hp?y86 & newer;
F225 (4-Stroke)?°02 & newer;
VF225 (VMAK?HO)?°10 & newer;
F225 (Offshore)?°10 & newer;
250 hp?y90 & newer;
250 hp (VMAX?°01;
F250 (4-Stroke)?°02 & newer;
VF250 (VMAX?HO)?°10 & newer;
F250 (Offshore)?°10 & newer;
300 hp?°04-2007;
F300 (Offshore)?°10 & newer *For engines 300 hp or higher, use "High Horsepower Sleeve" (P/N 991372)
Attaching Hardware:H69
Yamaha?terndrives 43/4" Gearcase
3 L (130 hp) (EST/PSR)?y89-93;
4.3 L (205 hp) (EST/PSR/YEMS)?y89-93;
5.0 L (205 hp) (EST/ PSR/YEMS)?y89-93;
5.7 L (260 hp) (EST/PSR/YEMS)?y89-93;
*7.4 L (300 hp) (Hydra Drive EST)?y92-93 *For engines 300 HP or higher, use ?âgh Horsepower Sleeve?B/N 991372).
Attaching Hardware:H69
Attaching Hardware
H69
Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770
This product replaces:
- 6G5-45941-00-98, 6G5-45941-00-00, 14984006712
