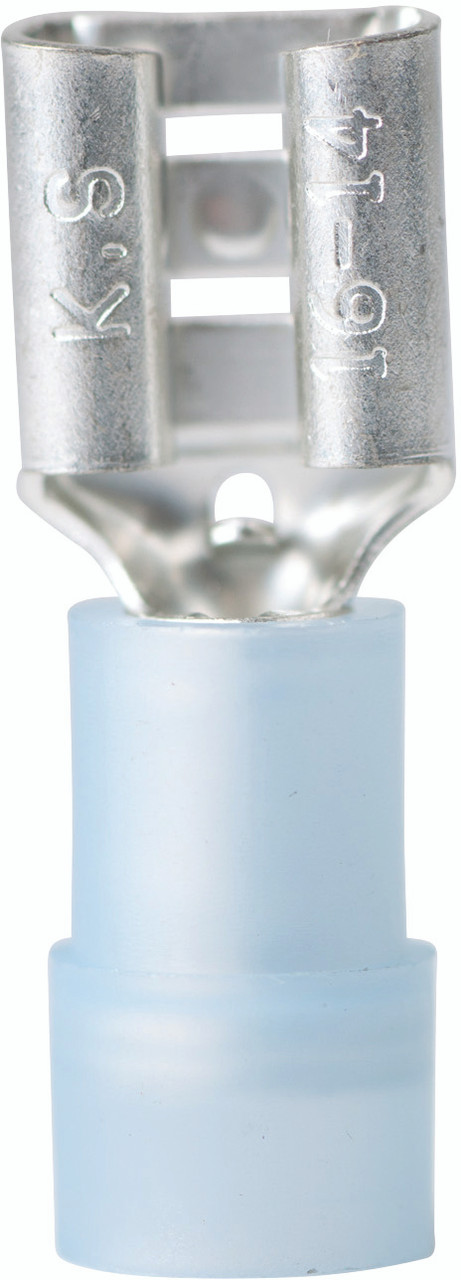

The Ancor - 220818 (1-220818) 16-14 Disconnects - Female is a high-quality blue nylon spade connector that makes constructing removable electrical connections straightforward and quick. The nylon shell acts as a semi-flexible protecting layer, preventing corrosion, oxidation, and shorts.
Tinned copper has the lowest electrical resistance yet provides the best corrosion protection, whereas nylon insulators are simple to crimp and do not separate. The barrels also hold wires tightly with minimal effort and connect wires ranging from 16 to 14 gauge.
Key Features:
- Insulated nylon with insulation grip
- Funnel entrance, double crimp
- Internal 0.25-inch Tin-Plated Brass Receptacle with Blue Spade Nylon Crimp Connectors
- For accurate crimping, translucent tubing allows for visual inspection of inserted wire.
- RoHS and CE Standards Compliant Wire Range: 1.5-2.5mm2, Max. With a 0.25-inch diameter, the current is 15 amps.
- The small "stop-tab" within the connector helps avoid over-insertion of wire.
Specifications:
- SKU: 1-220818
- Weight: 0.25 LBS
- UPC: 091887228281
- Gender: Female
- Quantity/Pkg.: 100
- Wire Range: 16-14
- Connector Type: Crimp
- Contact Material: Brass
- Insulation Mateial: Nylon
- Tab Size: 0.250/ 6.4mm (UL310)
- Brand: Ancor
- Condition: New
- This product replaces: 639-220818, 91887228281
.250 /6.4mm Tab Size UL 310. Nylon insulated with insulation grip double crimp, funnel entry.
This product replaces:
- 639-220818, 91887228281
