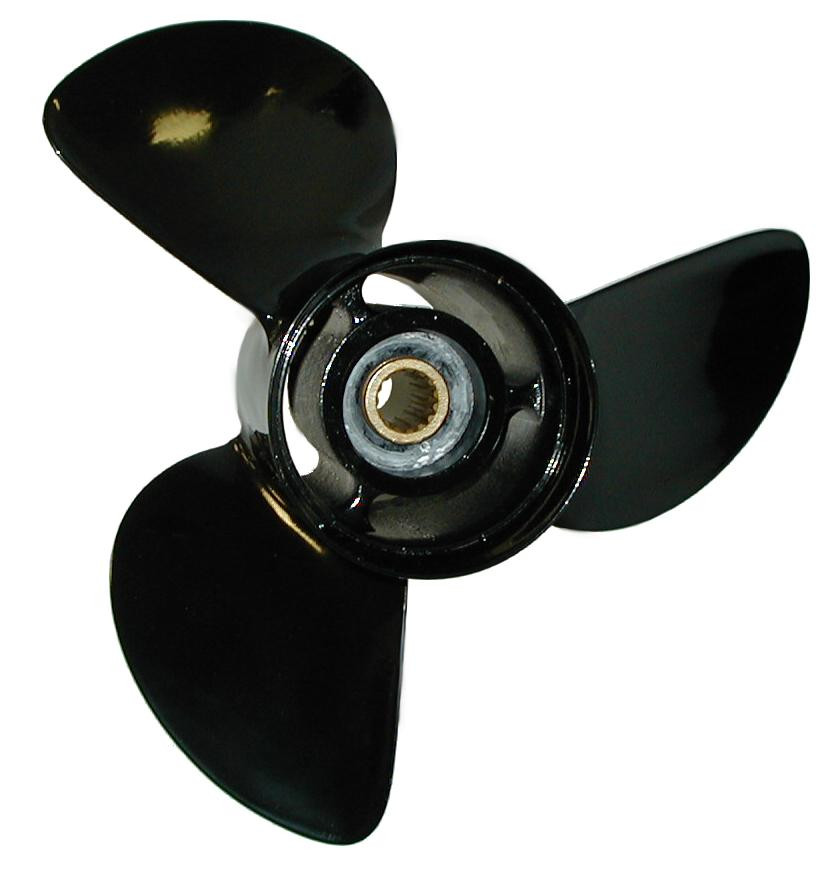

The aluminum propeller Michigan Match 101029 has a NAVAL brass spindle with a rubber cushioned hub that absorbs impact and a replacement boat prop is ideal. It boasts precision-balanced blades with a high gloss black powder coat. This propeller rotates in a right-hand direction and has 15 splines. Walleye Boats, Inflatables, Family Cruisers, Aluminum Consoles, Offshore Singles, Pontoons, Workboats, and Houseboats are recommended boat applications. It Replaces Yamaha M & T Series Yamaha Propellers.
Key Features:
- With a High gloss black powder coat
- The NAVAL brass spindle has a rubber-cushioned hub that relieves shock and the stress of shifting gears.
- Rotates in the right-hand direction
- It fits for replaces Yamaha M & T, Series Yamaha Propellers
- Available in Aluminum
Specifications:
- Brand: Michigan Wheel
- Weight: 6.00 lbs
- SKU: 101029
- Material: Aluminum
- Pitch: 21
- Engine type: Yamaha
- Number of Blades: 3
- Number of Splines: 15 tooth spline
- Diameter: 13-3/4 Inch
- Item Color: Black
18'-19' (37-46 MPH)
Engine Application
Yamaha?150-300 Horsepower 43/4" Gearcase
150 hp?y86 & newer;
F150 hp (4-Stroke)?°04 & newer;
175 hp?y84 & newer;
F175 (4-Stroke)?°14 & newer;
200 hp?y84 & newer;
200 hp (VMAX?°01;
F200 (4-Stroke)?°02 & newer;
VF200 (VMAX?HO)?°10 & newer;
220 hp (Special)?y84-85;
225 hp (Excel)?y87-88;
225 hp?y86 & newer;
F225 (4-Stroke)?°02 & newer;
VF225 (VMAK?HO)?°10 & newer;
F225 (Offshore)?°10 & newer;
250 hp?y90 & newer;
250 hp (VMAX?°01;
F250 (4-Stroke)?°02 & newer;
VF250 (VMAX?HO)?°10 & newer;
F250 (Offshore)?°10 & newer;
300 hp?°04-2007;
F300 (Offshore)?°10 & newer *For engines 300 hp or higher, use "High Horsepower Sleeve" (P/N 991372)
Attaching Hardware:H69
Yamaha?terndrives 43/4" Gearcase
3 L (130 hp) (EST/PSR)?y89-93;
4.3 L (205 hp) (EST/PSR/YEMS)?y89-93;
5.0 L (205 hp) (EST/ PSR/YEMS)?y89-93;
5.7 L (260 hp) (EST/PSR/YEMS)?y89-93;
*7.4 L (300 hp) (Hydra Drive EST)?y92-93 *For engines 300 HP or higher, use ?âgh Horsepower Sleeve?B/N 991372).
Attaching Hardware:H69
Attaching Hardware
H69
Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770
This product replaces:
- 6G5-45943-01-00, 6G5-45943-01-98, 101013, 201021, 14984006750
