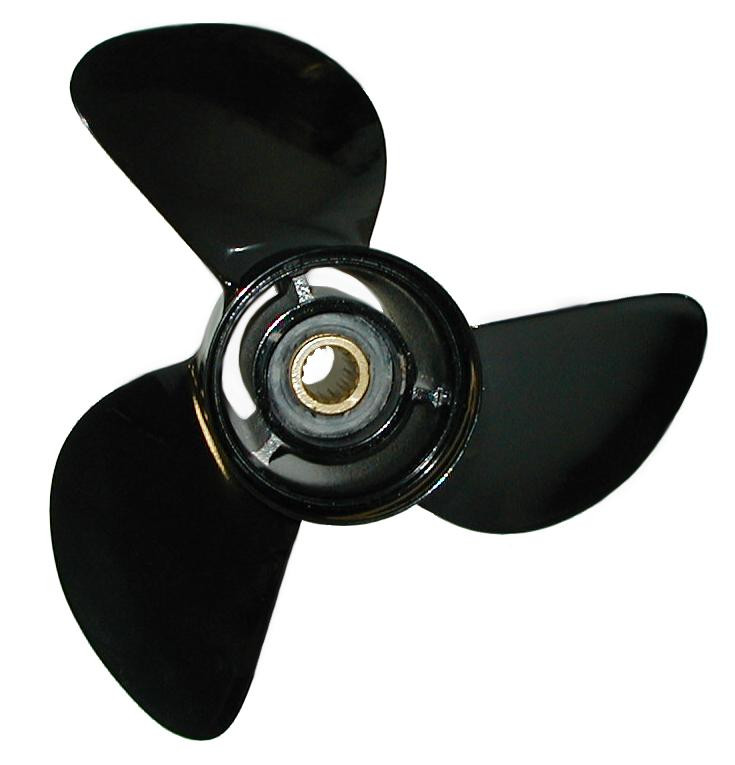

Michigan wheel model number 101031 with a NAVAL brass spindle and a rubber-cushioned hub that absorbs impact and Shifting gears causes a lot of tension. It improved powder coating and beefier bushing. This propeller replaces OEM Yamaha Semi-Cleaver Blade Geometry and Yamaha?"K" Series Propellers. It was made from aluminum and weighed about 8.00 lbs. Typically rotates in the right-hand direction with the help of 3 blades. Ski boats, inflatables, workboats, offshore singles, aluminum consoles, walleye boats, pontoons, family cruisers, and houseboats are all recommended boat applications. Warning: This product may contain materials that are prohibited by California Proposition 65.
Key Features:
- Replaces OEM Yamaha Semi-Cleaver Blade Geometry and Yamaha?"K" Series Propellers
- Rotates in the right-hand direction with the help of 3 blades.
Specifications:
- Brand: Michigan Wheel
- SKU: 101031
- Weight: 8.00 lbs
- Material: Aluminum
- Pitch: 13
- Number of Blades: 3
- Item Color: Black
- Diameter: 13-5/8
- Number of Splines: 15 Tooth Spline
22'-25' All Load
OEM-equivalent blade geometry.
Engine Application
Yamaha?50-130 Horsepower 41/4" Gearcase
T50 hp?y96 & newer;
T60 hp?°03 & newer;
60 hp (Includes C60/E60/P60)?y92-2005;
F70 (4-Stroke)?°10 & newer;
70 hp?y84 & newer;
F75 (4-Stroke)?°03 & newer;
5 hp (Includes C75/E75/P75)?y94-99;
80 hp?y97;
F80 (4-Stroke)?y99-2002;
85 hp?y91-97;
F90 (4-Stroke)?y99 & newer;
90 hp (Includes C90)?y84 & newer, F100 (4-Stoke)?y99-2002;
F115 hp (4-Stoke)?°00 & newer;
115 hp (Includes C115/P115)?y84 & newer;
130 hp?y84-2003
Attaching Hardware:H68/H69
Attaching Hardware
H68/H69
H68
Flat washer:
Quicksilver: 859907
Nut (castle):
Sierra: 18-3732
Quicksilver: NLA
Spacer washer (aft, splined):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3781
Michigan Wheel: 990766
Thrust washer (forward):
Michigan Wheel: 990769
H69
Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770
This product replaces:
- 6E5-45949-00-00, 14984006767
