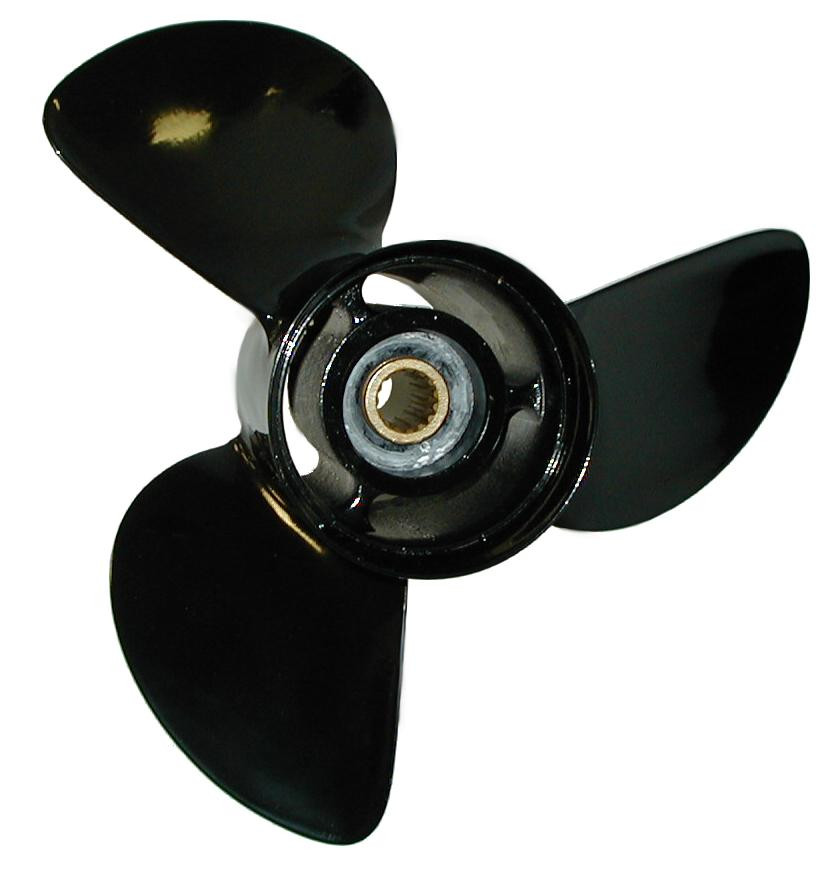

The 14 1/2 X 17 A3R PROP (101027) is a top-quality Aluminium Three Blade Right Hand Michigan Match Thru Exhaust propeller. A higher-quality, higher-performing propeller. Utilizes a patented squeeze cast process to produce stronger blades with great acceleration and performance. The rubber-cushioned hub of the NAVAL brass spindle absorbs shock.
Key Features:
- Top-quality Aluminium Three Blade Right Hand Propeller
- Features a NAVAL brass spindle that absorbs impact.
- Powder coating has improved, and the bushing has upgraded.
- Perfect aluminum propeller replacements
- 100% Brand new and made with the Top Quality Materials in the Industry with zero fault production
- Stylish design, excellent performance quality, durability, and high reliability
- Proven and verified for exceptional dependability throughout the manufacturing process to ensure it meets our standards for quality.
- High-quality materials and precise manufacture
Specifications:
- Brand: Michigan Wheel Marine
- Condition: Brand New
- Item Number: 101027
- Weight: 6.00 LBS
- Material: Aluminum
- Blade Quantity: 3
- Diameter: 14- 1/2
- Pitch: 17
- Spline: 15
- Rotation: Right (R)
- Engine Application: Yamaha 150-250 HP Outboards. 4-3/4" gearcase. Thru hub exhaust.
- Yamaha Sterndrives. 4-3/4" gearcase. Thru hub exhaust.
- Attaching Hardware: H69
Note: This product replaces:
- 6G5-45947-01-98, 6G5-45947-01-00, 3511-148-17, 14984006736
19'-23' (27-37 mph)
Engine Application
Yamaha?150-300 Horsepower 43/4" Gearcase
150 hp?y86 & newer;
F150 hp (4-Stroke)?°04 & newer;
175 hp?y84 & newer;
F175 (4-Stroke)?°14 & newer;
200 hp?y84 & newer;
200 hp (VMAX?°01;
F200 (4-Stroke)?°02 & newer;
VF200 (VMAX?HO)?°10 & newer;
220 hp (Special)?y84-85;
225 hp (Excel)?y87-88;
225 hp?y86 & newer;
F225 (4-Stroke)?°02 & newer;
VF225 (VMAK?HO)?°10 & newer;
F225 (Offshore)?°10 & newer;
250 hp?y90 & newer;
250 hp (VMAX?°01;
F250 (4-Stroke)?°02 & newer;
VF250 (VMAX?HO)?°10 & newer;
F250 (Offshore)?°10 & newer;
300 hp?°04-2007;
F300 (Offshore)?°10 & newer *For engines 300 hp or higher, use "High Horsepower Sleeve" (P/N 991372)
Attaching Hardware:H69
Yamaha?terndrives 43/4" Gearcase
3 L (130 hp) (EST/PSR)?y89-93;
4.3 L (205 hp) (EST/PSR/YEMS)?y89-93;
5.0 L (205 hp) (EST/ PSR/YEMS)?y89-93;
5.7 L (260 hp) (EST/PSR/YEMS)?y89-93;
*7.4 L (300 hp) (Hydra Drive EST)?y92-93 *For engines 300 HP or higher, use ?âgh Horsepower Sleeve?B/N 991372).
Attaching Hardware:H69
Attaching Hardware
H69
Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770
This product replaces:
- 6G5-45947-01-98, 6G5-45947-01-00, 3511-148-17, 14984006736
