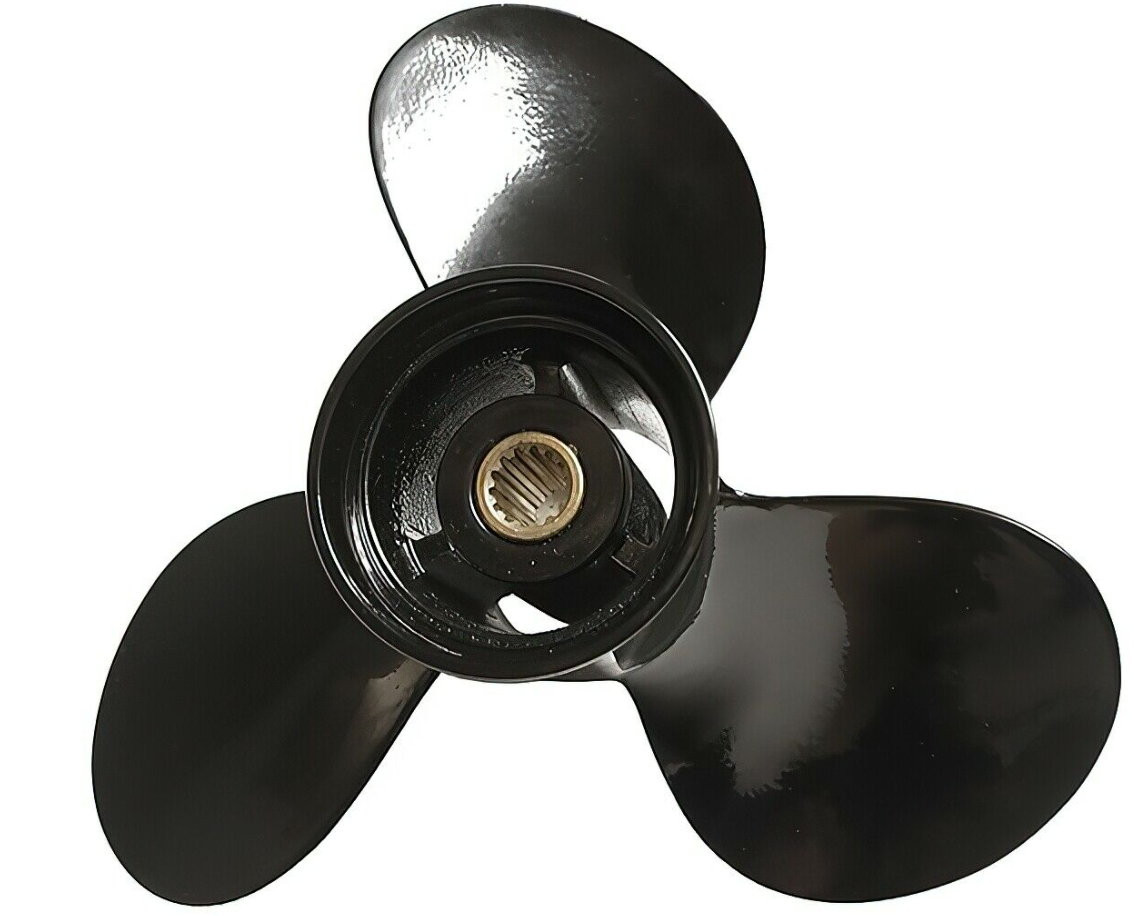

This Michigan Match Aluminum Propeller 142204 has a diameter of 9 1/4 and a pitch of 9. A 9-pitch propeller would move forward 9 inches in one revolution. This propeller is designed with 3 blades for faster boat speed. Additionally, this propeller will increase your boat?³ movement speed.
Like any other propeller, this transfers the engine horsepower (HP) to the water, a term to describe the process is commonly known as thrust. The thrust is created when a propeller pulls the water in front, that is on the boat side while pushing the water out on the backside. The momentum is changed, and the number of propellers affects the pressure differential.
The drag increases proportionally as the number of blades is added to a propeller hub. This shortens the propeller's capacity to hold more water as well as the time element required between loading and unloading water. It is said that a propeller with one blade would be the fastest however not really recommended because water vibration could not be contained.
Key Features:
-
A diameter of 9 1/4 with a pitch of 9, Right Hand Rotation Prop
-
Made of Aluminum Alloy
-
Designed with 3-blades
-
With a standard replacement of NS9.9 / NSF 9.9 (Short Shaft), NS15 / NSF15 (Short Shaft), NS18, NSF18 (Long Shaft), and NSF20 (Long Shaft)
-
A perfect replacement aluminum prop
-
It has an improved beefier bushing and powder coating to protect the aluminum.
Specifications:
-
SKU: 142204
-
UPC: 014984019613
-
Weight: 3.00 Lbs
-
Diameter: 9 1/4
-
Material: Aluminum
-
Pitch: 9
-
Rotation: Right Hand
-
Number of Blades:3
-
Engine: Evinrude, Johnson, Mercury, Mariner, Nissan, and Tohatsu
14'-17' All Load
?142204 Standard Replacement for: NS9.9 / NSF 9.9 (Short Shaft), NS15 / NSF15 (Short Shaft), NS18, NSF18 (Long Shaft), NSF20 (Long Shaft).
Engine Application
Evinrude? Johnson?15 Horsepower
15 hp (4-Stroke)?°12 & newer
Attaching Hardware:H37
Mercury? Mariner? Sea Ray 9.9-20 Horsepower
9.9 hp (Bigfoot)?°05 & newer;
15 hp (4-Stroke);
2007 & newer;
20 hp (4-Stroke)?°07 & newer
Attaching Hardware:H37
Nissan? Tohatsu?9.9-20 Horsepower 21/2" Gearcase
9.9 hp (2-Stroke)?y84 & newer;
9.9 hp (4-Stroke)?°00-2003;
12 hp?y85-88;
15 hp (2-Stroke)?y85 & newer;
15 hp (4-Stroke)?°00 & newer;
18 hp (2-Stroke)?y85 & newer;
18 hp (4-Stroke)?°01-2008;
20 hp (4-Stroke)?°07 & newer
Attaching Hardware:H47
Attaching Hardware
H37
Complete kit:
Quicksilver: 803743Q02
Nut:
Quicksilver: 11-16147
Thrust washer:
Quicksilver: 8M0070811
Washer:
Quicksilver: 12-16146
H47
Thrust washer (forward):
Michigan Wheel: 990582
Washer, nut & cotter pin kit:
Michigan Wheel: 990759
This product replaces:
- 897750A11, 5040590, 48-897750A11, 5111-093-09, 362B641010, 14984019613
