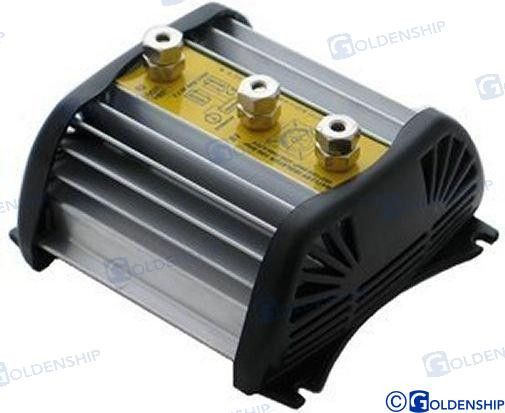

The BATT ISO 1 ALTX 2 BAT 70A 12/ (SICHPR10002) is a charge distributor isolator for batteries. The isolator's job is to prevent the primary battery from being drained by other loads in the charging system while continuously allowing the alternator to help charge it. It enables the flow of electrical current in a single direction without worrying that the battery with the highest charge may discharge against the lowest-filled. The BATT ISO 1 ALTX 2 BAT 70A12/ (SICHPR10002) ensures that power is evenly between multiple batteries and the alternator. Each battery is isolated and acts as an independent power source, allowing the main battery to conserve energy for starting and essential functions. When charging, each battery receives the amount of charge it needs based on its threshold.
Key Features
-
It allows two or more batteries to recharge simultaneously using one or two generators.
-
Keeps current from flowing from a fully charged main battery to a partially charged auxiliary battery by utilizing diodes to allow current to travel only in one direction.
-
It eliminates the problem of battery drain.
-
Efficiently save energy for beginning and other crucial processes.
Specifications
-
BRAND: RECMAR
-
SKU: SICHPR10002
-
Weight:0.72 LBS
-
Unit of Measure: EA
-
Max AMP: 70A
-
Voltage: 12V / 24V
