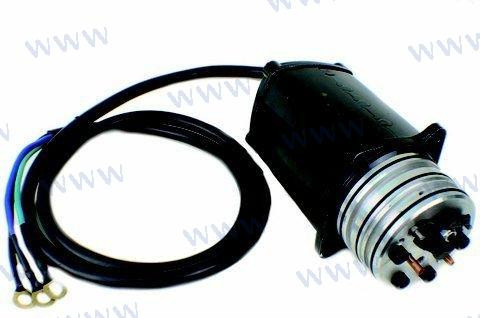

This product fits 1985-1992 Mercury/Mariner 35-220 HP Magnum II Outboards with (Design 1) 3 Ram with side fill reservoir. It also replaces round Prestolite and Square Style Eaton. It has a wire harness relay kit that converts the old 3-wire motor to the much-improved one.
Key Features:
-
It replaces the trim solenoids with the newer style relays
-
It is also for YAMAHA 40-100 HP 1995-2003
-
It has a 2-wire connection (ring terminal ends) and a 3-bolt mounts
-
This product replaces:
-
12659, 12660, 12661, 12662, 13506, 392-8987
-
818186A3, 818186A6, 826728A10, 82672907
-
826729A, 826729A/08, 826729A07, 826729A08
-
826729A09, 826729A10, 826729A4, 826729A4/07
-
8995, 8M0143217, 8M0168223
-
99186, 99186-1, 99186/T, 991861, 99186T
Specifications:
-
SKU: REC826729A10
-
UPC: 8.43541E+12
-
Weight: 3.07 LBS
-
Unit of Measure: EA
-
Condition: New
-
Manufacturer Part Number (MPN): REC826729A10
-
Voltage: 12 Volts
-
Rotation: Reversible
-
Field Hsg OD: 63.6 mm/ 2.504 in
-
Overall Length: 120.4 mm/ 4.740 in
-
Shaft OD: 7.9 mm/ 0.311 in
-
Shaft Notes: 4 mm x 8 mm Drive Tang
