This hub kit will undoubtedly be one of the finest buys you ever make! This hub kit, made with 1750lb certified components, allows you to run 3500lb axles on your vehicles. Fits a variety of manufacturers and models, including Kenworth, Peterbilt, and others. The kit comes in various sections, allowing you to assemble it precisely as you want it. Get a fresh axle nut and cotter pin for every new hole you drill! Excellent for use as a spare or while transporting bulky items!

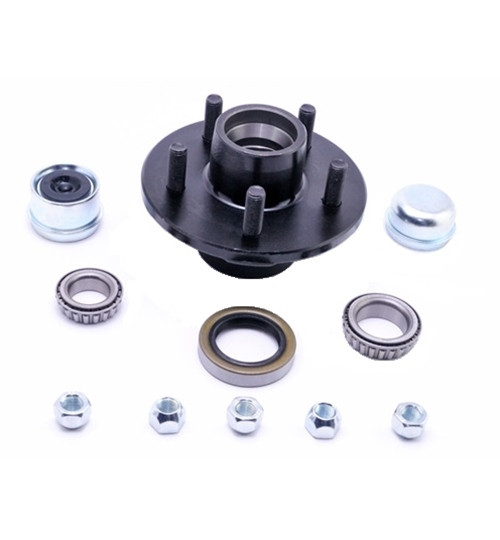

Box Hub kit contains:
-
1 Inner Bearing L68149 (1.378" ID)
-
1 Outer Bearing L44649 (1.063" ID)
-
1 L44610 Outer Race (Pre-Installed) 1.98" OD
-
1 L68111 Inner Race (Pre-Installed) 2.361" OD
-
1 ten-to-ninety-ninety-ninety (1.719" x 2.565")
-
1 46749 lubricant cap (1.986" OD)
-
1 grease cap (21-41-1) (1.986" OD)
-
1 85-1 Plug for Grease Cap
-
5 X1023R Wheel Nuts with Cones
-
For Convenience, 1 5 on 4.5" Pregreased Hub
-
Each hub has a capacity of 1,750 pounds.
Key features:
-
This kit includes everything you need to repack one hub on a Lippert, Dexter, or Al-Ko 3,500-lb axle.
-
The "Redneck" Boxed Hub Kit is a high-quality, low-cost agricultural vehicle hub.
-
This is not a low-quality product that will fall apart within the first year of use! It has strong strength bearings as well as a heat-treated cap and spindle.
-
The pull studs have been heated and come with an enlarged washer.
-
For increased longevity, the stator plates and axle seals have been modified.
-
The center knockouts are screened to prevent the strands from twisting or severed by impact or abrasion.
Specifications:
-
Brand: REDNECK TRAILER SUPPLIES
-
Manufacturer: REDNECK TRAILER SUPPLIES
Redline Hub W/ 5 on 4.5" Bolt Pattern For 3,500lb Axles Redline hub kits come with some of your main components like the inner and outer bearings. With Redline kits there is no need to worry about the races as they are already pressed into the hub for you. You will also get the grease seal, grease cap, and wheel nuts for the hub. This hub is designed for use with a #84 spindle. Each Hub has a 1,750lb capacity. Spindle nut and spindle washer sold separately. Items in Kit: ?C`L68149 Inner Bearing (1.378" ID) ?C`L44649 Outer Bearing (1.063" ID) ?C`L44610 Outer Race (Already Pressed In) 1.98" OD ?C`L68111 Inner Race (Already Pressed In) 2.361" OD ?C`10-19 Grease Seal (1.719" x 2.565") ?C`46749 Grease Cap (1.986" OD) ?C`21-41-1 Grease Cap (1.986" OD) ?C`85-1 Grease Cap Plug ?C`X1023R Coned Wheel Nuts ?C`5 on 4.5" Pregreased Hub For Convenience ?Cl750lb Capacity Per Hub To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
