BRONZE GARBOARD DRAIN (3-520040-1) is the first set of planks or plates laid on the boat?³ bottom near the keel. It is a retention system that helps prevent loss and allows water to escape from the bilge. The threaded bronze fittings securely plug a drain hole. When seawater or rain piles up inside the boat. It can be open to allow all the water to flow out to avoid further damage critical to the engine.

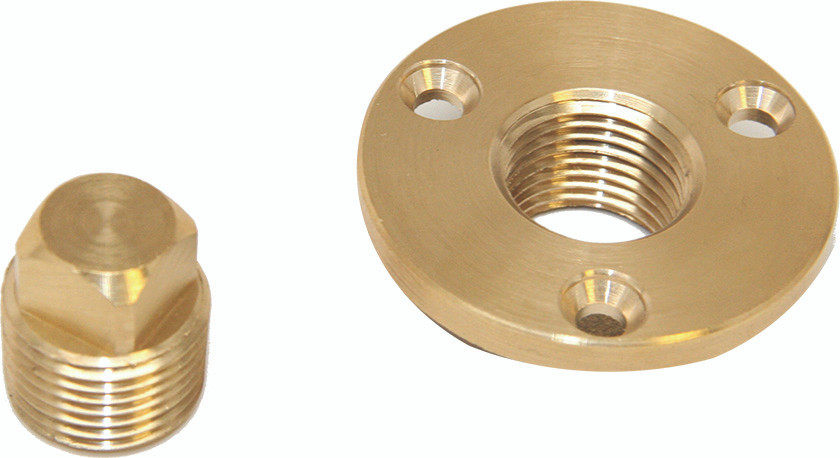

BRONZE GARBOARD DRAIN (3-520040-1) one with both a bronze flange fitting and a bronze plug. To install, simply drill a pilot hole through the hull's side at the lowest position in the bilge, inclined slightly downward, to attach the fitting. After cutting the required hole with a hole saw the same diameter as the stem on your garboard drain. Also, make sure the hole's edges are sealed with epoxy resin.
Key Features:
- Durable and proven to last longer than other substandard products.
- High in quality can be used in any water environment.
- Made from bronze material, it has high corrosion resistance in saltwater.
- High-polish finish for a mirror-like appearance complementing modern watercraft, boats, and yachts.
Specifications:
- Brand: Sea Dog Marine
- SKU: 3-520040-1
- UPC: 035514520010
- Weight: 0.29 LBS
- NPT Thread: 1/2" NPT
- Fastener: #10 FH
- This product replaces: 520040, 5-54837, 520040-1, 3-520040, 35514520010
Machined Bronze. 1/2" NPT tapered thread.
This product replaces:
- 520040, 5-54837, 520040-1, 3-520040, 35514520010
