Sea-Dog Line is making sure that whatever you do, you are safe at all times. Sea-Dog Line provides marine circuit protection. Sea-Dog Line produces products from Electrical switches and circuit protection to keep you from any electrical hazard.

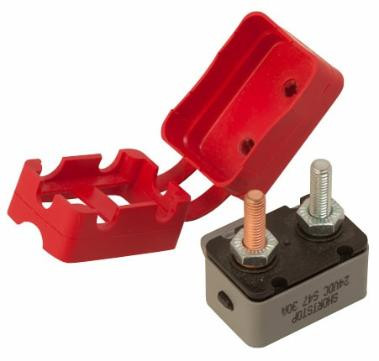

Sea-Dog Line Circuit Breakers constructed of stamped brass, injection-molded nylon, and polycarbonate resin. Circuit Breaker is an inline circuit breaker that has a resettable manual button for use with higher amperage accessories. Circuit Breakers are ignition protected and can be installed aboard gasoline-powered boats.
The Circuit breaker may be used on 12 VDC or 24 VDC systems. The "power in" is the copper post or the battery and the "power out" is the silver post or auxiliary.
Key Features:
- The Circuit Breaker is made of injection-molded nylon and polycarbonate resin and stamped brass number 10-32 studs with nuts.
- Available with or without splash-proof Breaker Cover (420840).
- It complies with SAE standard J553 and SAE J1171.
- A: 1-5/16 inches - B: 1-7/16 inches - C: 1-? inches - D: ? inches
Specifications:
- Brand: Sea-Dog Line
- Weight: 0.05 LBS
- This product replaces: 420854-1, 420854, 3-420854
Stamped Brass/Injection Molded Nylon/Polycarbonate
Inline Resettable Circuit Breakers with manual reset button are for use with higher amperage accessories. These breakers are ignition protected and can be installed aboard gasoline powered boats. May be used on 12 VDC or 24 VDC systems. Constructed of injection molded nylon and polycarbonate and stamped brass #10-32 studs with nuts. The copper post is the battery or "power in" post and the silver post is the auxiliary or "power out" protected post. Available with or without splash proof Breaker Cover (420840). Complies with SAE standard J553 and SAE J1171.
This product replaces:
- 420854-1, 420854, 3-420854
