The trim/tilt system that raises and lowers your outboard motor is controlled by the trim switch on your boat. The button has three positions: "Up," "Down," and "Off." The center terminals direct or disconnect electrical power, one set to the "Up" side of the trim/tilt mechanism and the other set to the "Down" side.

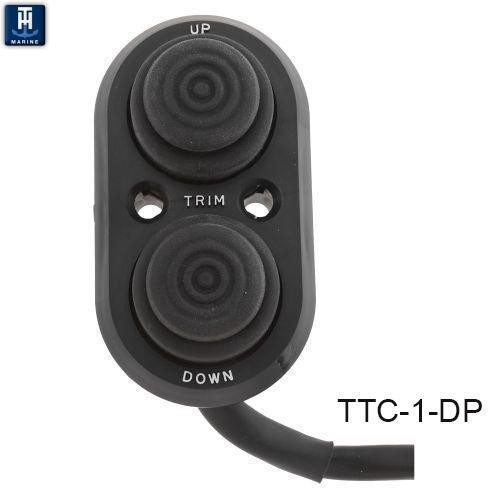

TTC-1-DP TH MARINE TRANSOM TRIM CONTROL Provides a weatherproof tilt control system at the stern of the boat to allow one person to place the motor support in place. It can be used as a switch to adjust hydraulic jack plates from a distance. The switch box is made of molded black plastic with raised white letters and installed on any flat surface. It also includes an 18-inch pigtail cable and installation instructions.
Key Features:
- Outboard or stern drive trim switch
- Switch for hydraulic jack plates
- Control Switches that are Waterproof
- Molded casing with UV resistance
- Power Jack Plates Can Also Be Operated
- Tilt and trim control can be placed wherever.
- Push-button switches that are waterproof
- Allows you to have control wherever you want it.
Product Specifications:
- Brand: TH Marine
- SKU: 30-TTC-1
- UPC: 733572003406
- Weight: 0.25 lbs
- Material: Plastic
- Type: Switch
- Dimensions: 18" pigtails
Constructed of molded black plastic with raised white letters. It can easily be wired to the PT-130 Power Tilt N?Ö Trim or Power-Lift?7ire assemblies.
This product replaces:
- TTC1, TTC-1, TTC, 30-20220, 30-TTC, 30-T, 30-TTC1
