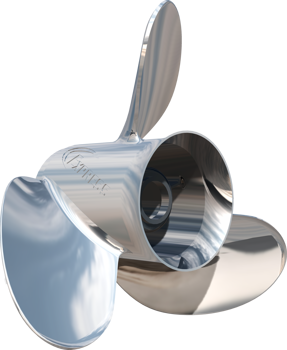

A propeller is a whirling fan-like device that employs the ship's primary engine to move it forward, for the reason that stainless steel has substantial performance and durability than aluminum. Our Turning Point 31502311 is a three-blade steel prop with a diameter of 14.3 ''diameters and a pitch of 23 inches that rotates right-hand. A three-blade propeller is a typical use for high-speed applications.
Key Features:
- Ultra Coat Finish is a new five-step powder coating process.
- There is up to 46% more reverse thrust than in competing designs.
- Stainless steel is needed because it is more durable, corrosion-resistant and more functional than aluminum.
- At high speeds, the steering torque and vibration will develop.
- The propeller of exceptional quality
- Blades that are stronger and perform better
- A propeller with a right-hand rotation which normally rotates.
- Excellent value for money.
Product Details:
- SKU: 31502311
- UPC: 652480206634
- Weight: 13.00 LBS
- MATERIAL: Stainless Steel
- Diameter: 14.3
- PITCH: 23
- Hub Kit: Not Included
Engine Application
Evinrude/Johnson?90-300 Horsepower 4.75?@Ã¥arcase
V4 with V6 large gearcase: 100hp commercial, 120hp ('85),130hp;
('95-'96), 140hp ('85), Pleasure ('95+): 115hp, 130hp / H.O. (includes E-TEC H.O.): 90 (25" shaft), 115, 135, 150, 200, 225, 250hp;
E-TEC (includes pontoon series - not for E-TEC G2): 90hp (25" shaft), 115hp, 130hp ('09-'10), 135hp to 300hp / V6: 135hp to 250hp / V8: 250hp to 300hp
Evinrude?150-300 Horsepower 4.75?@Ã¥arcase
Evinrude?-TEC?2? Series Only: 150 to 300hp
Honda?115-250 Horsepower (4-Stroke) 4.75" Gearcase
BF115D ('11+), BF135 ('04+), BF150 ('04+), BF200 ('02+), BF225 ('02+), BF250 ('12+)
Note: for engines under 200hp use installation kit 11500800. For engines 200+hp use super duty installation kit 11700800
Johnson?200-225 Horsepower (4-Stroke) 4.75?@Ã¥arcase
Note: Use Express Mach3 OS series props only.
4 stroke (Johnson): 200hp, 225hp
Mercruiser 120-300+ Horsepower 4.75" Gearcase
Note: If propeller strikes trim tab, replace with Mercury part #822777A1. Alpha One Sterndrives (?3+) / Bravo One Sterndrives (?3+) / Models (?2 & older): 1A, 1B, 1C, 120, 140, 145DTS, 165, 228, 470, 485, 888, 898, 225S, 233, 255TRS, 260, 280TRS, 330 TRS / MerCruiser (?3-?¸5): 120-190hp, 200-260hp
Note: for engines under 200hp use installation kit 11500100. For engines 200+hp use super duty installation kit 11700100
Mercury?¬ Mariner?¬ Sea Ray 135-300 Horsepower V-6 4.75" Gearcase
Note: 115hp ProXS CT Only;
For ProXS & Verado w/ 1.25?C2op haft, use Mercury Solid Hub kit with the Turning Point Prop. FourStroke? & SeaPro?º 90CT, 115CT, 150hp / V6: 135 to 300hp / Verado 135 to 300hp(not HD) / OptiMax: 150, 200, 250hp
NOTE: for engines under 200hp use installation kit 11500100. For engines 200+hp use super duty installation kit 11700100
Omc 2.0-8.2L Horsepower 4.75" Gearcase
Cobra 800: 3.0 to 7.5L / King Cobra: 454, 502, 7.4-8.2L ('90+) / Sea Drive: 2.0 to 4.0L
Suzuki?150-225 Horsepower 4.75?@Ã¥arcase
DT 2 stroke: 150hp to 225hp
Note: for engines under 200hp use installation kit 11500700. For engines 200+hp use super duty installation kit 11700700
Tohatsu?115-250 Horsepower (2 & 4-Stroke) 4.75?@Ã¥arcase
BFT115, BFT150, BFT200, BFT225, BFT250
Note: for engines under 200hp use installation kit 11500800. For engines 200+hp use super duty installation kit 11700800
Volvo Penta Aq 200-290 Horsepower 4.75" Gearcase
Note: Use 4 blade props only. AQ: 200, 250, 270, 280, 290
Volvo Penta Sx 3.0-8.2L Horsepower 4.75" Gearcase
Note: Not for Volvo DuoProp or Aquamatic drives. (?t+) SX:3.0 to 8.2L
Yamaha 150-300 Horsepower 4.75?@Ã¥arcase
Note: If Express Mach3 OS Prop strikes trim tab, replace with Yamaha part #6E5-45371-10-00. 2 and 4 stroke: 150 to 250hp / F300 (V6 only ?9+)
Note: for engines under 200hp use installation kit 11500500. For engines 200+hp use super duty installation kit 11700500
Yamaha 3.0-7.4L Horsepower 4.75" Gearcase
Note: If Express Mach3 OS Prop strikes trim tab, replace with Yamaha part #6E5-45371-10-00. 3.0 to 7.4L
Note: for engines under 200hp use installation kit 11500500. For engines 200+hp use super duty installation kit 11700500
Yamaha 350 Horsepower 5.25?@Ã¥arcase
Note: F350 Use Express Mach3 OS series props only.
This product replaces:
- 652480206634, EX-1423
