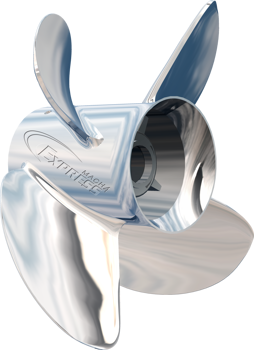

The 15X15 Stainless Steel 4 Blade Right Hand PROP EXPRESS Mach4 (31501532) by Turning Point is a four-bladed right-hand rotating propeller built with an industry-leading TP17 stainless steel best suited for 200 hp Johnson/Evinrude. This Express Mach4 series is also proudly built with great precision, making it ideal for any application requiring improved acceleration, cornering, or load carrying characteristics.
Key Features:
- The hole shot boosting vent hole system allows your boat to reach higher RPMs faster.
- Modern quality designs offer optimum top-end speed, secure handling (with less ventilation), and quick acceleration.
- Increased pitch progression - enhances hydrodynamic efficiency for optimum overall results.
- Fine-tuned cupping holds the watertight and inhibits ventilation significantly.
- High rake - improves top-end speed and gives high lift.
Specifications:
- SKU: 31501532
- UPC: 652480200779
- Weight: 14.00 LBS
- Pitch: 15"
- Diameter: 15"
- No. of Blades: 4
- Rotation: Right Hand (RH)
- Material: Stainless Steel
- Brand: Turning Point Propellers
- Condition: New
Note:
- Installation of the 500 series hub kit is necessary.
- Fit on gearcases with a 4-3/4" diameter.
Engine Application
Evinrude/Johnson?90-300 Horsepower 4.75?@Ã¥arcase
V4 with V6 large gearcase: 100hp commercial, 120hp ('85),130hp;
('95-'96), 140hp ('85), Pleasure ('95+): 115hp, 130hp / H.O. (includes E-TEC H.O.): 90 (25" shaft), 115, 135, 150, 200, 225, 250hp;
E-TEC (includes pontoon series - not for E-TEC G2): 90hp (25" shaft), 115hp, 130hp ('09-'10), 135hp to 300hp / V6: 135hp to 250hp / V8: 250hp to 300hp
Evinrude?150-300 Horsepower 4.75?@Ã¥arcase
Evinrude?-TEC?2? Series Only: 150 to 300hp
Honda?115-250 Horsepower (4-Stroke) 4.75" Gearcase
BF115D ('11+), BF135 ('04+), BF150 ('04+), BF200 ('02+), BF225 ('02+), BF250 ('12+)
Note: for engines under 200hp use installation kit 11500800. For engines 200+hp use super duty installation kit 11700800
Johnson?200-225 Horsepower (4-Stroke) 4.75?@Ã¥arcase
Note: Use Express Mach3 OS series props only.
4 stroke (Johnson): 200hp, 225hp
Mercruiser 120-300+ Horsepower 4.75" Gearcase
Note: If propeller strikes trim tab, replace with Mercury part #822777A1. Alpha One Sterndrives (?3+) / Bravo One Sterndrives (?3+) / Models (?2 & older): 1A, 1B, 1C, 120, 140, 145DTS, 165, 228, 470, 485, 888, 898, 225S, 233, 255TRS, 260, 280TRS, 330 TRS / MerCruiser (?3-?¸5): 120-190hp, 200-260hp
Note: for engines under 200hp use installation kit 11500100. For engines 200+hp use super duty installation kit 11700100
Mercury?¬ Mariner?¬ Sea Ray 135-300 Horsepower V-6 4.75" Gearcase
Note: 115hp ProXS CT Only;
For ProXS & Verado w/ 1.25?C2op haft, use Mercury Solid Hub kit with the Turning Point Prop. FourStroke? & SeaPro?º 90CT, 115CT, 150hp / V6: 135 to 300hp / Verado 135 to 300hp(not HD) / OptiMax: 150, 200, 250hp
NOTE: for engines under 200hp use installation kit 11500100. For engines 200+hp use super duty installation kit 11700100
Omc 2.0-8.2L Horsepower 4.75" Gearcase
Cobra 800: 3.0 to 7.5L / King Cobra: 454, 502, 7.4-8.2L ('90+) / Sea Drive: 2.0 to 4.0L
Suzuki?150-225 Horsepower 4.75?@Ã¥arcase
DT 2 stroke: 150hp to 225hp
Note: for engines under 200hp use installation kit 11500700. For engines 200+hp use super duty installation kit 11700700
Tohatsu?115-250 Horsepower (2 & 4-Stroke) 4.75?@Ã¥arcase
BFT115, BFT150, BFT200, BFT225, BFT250
Note: for engines under 200hp use installation kit 11500800. For engines 200+hp use super duty installation kit 11700800
Volvo Penta Aq 200-290 Horsepower 4.75" Gearcase
Note: Use 4 blade props only. AQ: 200, 250, 270, 280, 290
Volvo Penta Sx 3.0-8.2L Horsepower 4.75" Gearcase
Note: Not for Volvo DuoProp or Aquamatic drives. (?t+) SX:3.0 to 8.2L
Yamaha 150-300 Horsepower 4.75?@Ã¥arcase
Note: If Express Mach3 OS Prop strikes trim tab, replace with Yamaha part #6E5-45371-10-00. 2 and 4 stroke: 150 to 250hp / F300 (V6 only ?9+)
Note: for engines under 200hp use installation kit 11500500. For engines 200+hp use super duty installation kit 11700500
Yamaha 3.0-7.4L Horsepower 4.75" Gearcase
Note: If Express Mach3 OS Prop strikes trim tab, replace with Yamaha part #6E5-45371-10-00. 3.0 to 7.4L
Note: for engines under 200hp use installation kit 11500500. For engines 200+hp use super duty installation kit 11700500
Yamaha 350 Horsepower 5.25?@Ã¥arcase
Note: F350 Use Express Mach3 OS series props only.
This product replaces:
- 652480200779, EX-1515-4
