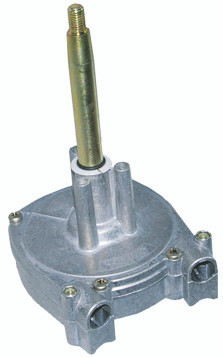

Make a routine to have an inspection and repair on the Steering system, and make yearly maintenance to keep your vessel safely navigated to be in perfect shape. The standard rotary helm is from Uflex for Rotech rotary steering systems behind the instrument panel and converts the steering wheel movements into the push-pull action on the cable. It converts from the rotational movement of the wheel to a linear movement of the cable.
Key Features:
- Features lock-to-lock steering wheel turns approximately 3.8, optional 90?? or 20?? installation, the standard of 3/4 tapered shaft, minimal feedback, and compact for mounting.
- The allowable steering wheel diameter is 16 inches (406 mm), and the minimum steering cable bend radius is 7.9 inches (200 mm).
Specifications:
- Brand: Uflex
- SKU: T71
- UPC: 702755021278
- Weight: 4.20 LBS
- Stroke: 9 inches (228 mm)
- This product replaces the following part numbers 702755021278, 7-6671, T71FC, T71FCE, T71, and 216-T71FC.
For Rotech rotary steering systems.
This product replaces:
- 702755021278, 7-6671, T71FC, T71FCE, T71, 216-T71FC
