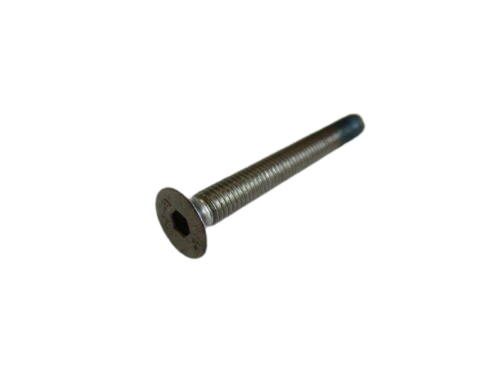

The head of socket screws has a hexagonal socket or internal drive. In most applications, the inserted screw must sit flush with or just below the surface of the workpiece, hex socket countersunk screws?F3o known as flat or flat head socket screws.
The tool needed to tighten and loosen a screw will reveal whether it is a socket screw. The basic rule of thumb is straightforward. A socket screw requires a specific internal wrenching drive, an Allen or hex key. The sloping shoulder design of countersunk socket screws is typically at an angle of around 82 degrees, enabling the screw to embed itself in the surface through a previously drilled countersunk hole.
Key Features:
-
Volvo Penta Lower Gear Housing Exploded View / Schematic
-
Perfect for uses requiring a well-tooled look or wider
-
High-strength fasteners with a low-profile flat head and an internal hex or Allen drive style
-
High-hardness, rust-free, non-polluting, and anti-corrosion
-
A long-lasting finish and exquisite quality
Product Specifications:
-
Brand: Volvo Penta
-
SKU: 3887570
-
Weight: 0.01 LBS
-
Drive System: Hex Socket
-
Head Style: Flat
-
Diagram Reference Number: 14
-
Unit Of Measure: EA
-
Condition: New
-
Manufacturer Part Number (MPN): 3887570
Volvo Penta Exploded view / schematic Lower Gearhousing
