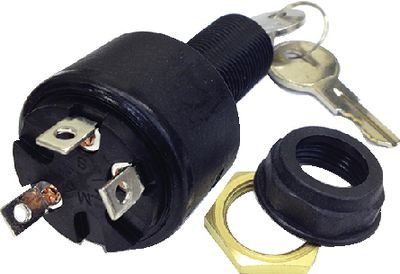

Experience the new Polyester Ignition Switch 3-PO MP39120. Three Position Conventional, Switch Positions: Off Run Start, Terminal Type 3 Screw Tab Marine-grade glass filled Polyester. The non-conductive housing eradicates potential shorts. The inner seal is in between the cylinder lock and contact plate.
Key Features:
-
It has a 20 Amp rating with 2, 3, and 4 position switches.
-
The switches for magneto and conventional ignitions.
-
It eliminates oxidation for maximum corrosion protection.
-
Sierra MP39120 ignition switch replaces Seadog 420360-1
-
This product replaces:
-
18-1809
-
49-39120
-
MP39120
-
MP39122
-
11-MP39120
-
2312139120
-
808282367633
Specifications:
-
SKU: MP39120
-
Hole Size: 7/8'
-
Weight: 0.29 LBS
-
Material: Polyester
-
Exterior?Ä: Machined
-
Back-Up Nut: Brass
-
Type: Conventional
-
UPC: 808282367633
-
Operating Voltage: 12 Volts
-
Face Nut: Hex Black Plastic
-
Terminal Type: 3 Screw Tab
-
Rated Ignition: 15 Amp at 12v DC
-
Rated Solenoid: 30 Amp at 12v DC
-
Manufacturer Part Number (MPN): MP39120
-
Product Dimensions (L x W x H): 1.63 x 4.87 x 6.87 inches
3 Position Conventional, Switch Positions: Off - Run - Start, Terminal Type: 3 Screw Tab-Marine grade glass-filled Polyester
This product replaces:
- 49-39120, MP39120, MP39122, 808282367633, 11-MP39120, 18-1809, 2312139120
